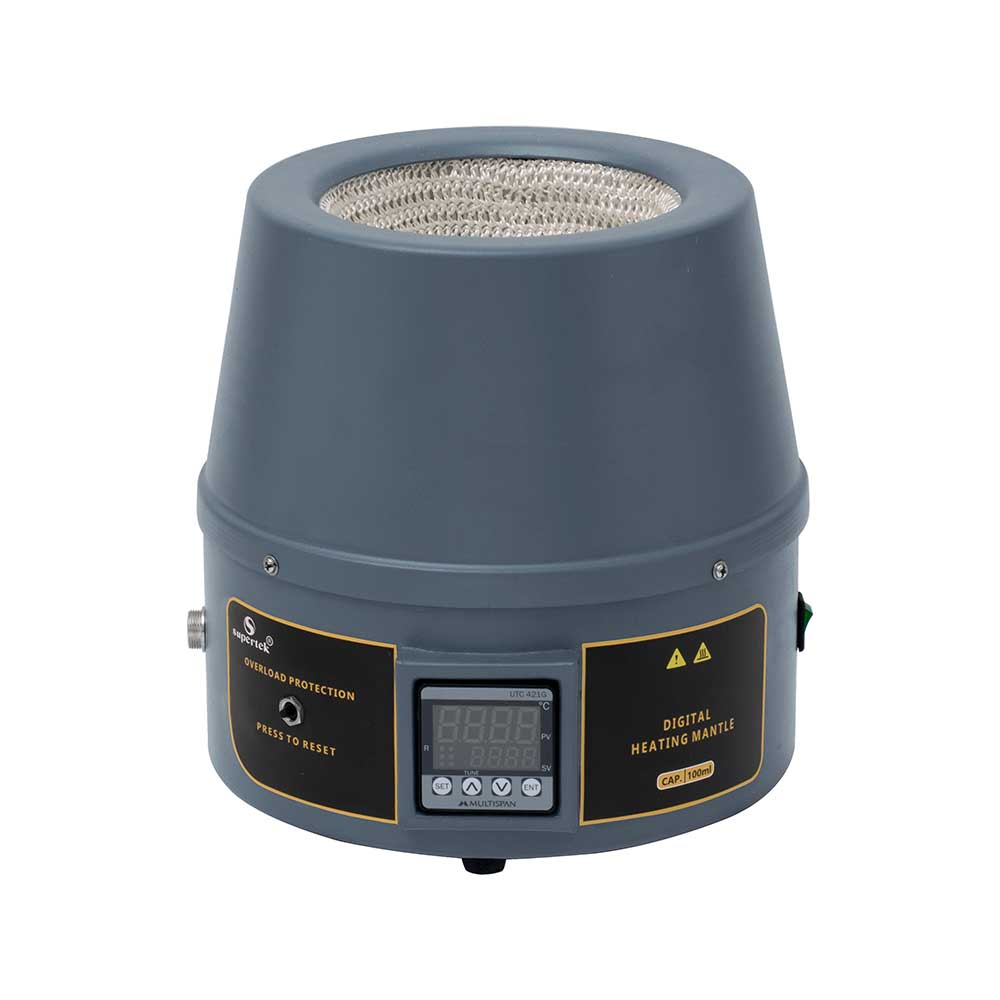

Heating Mantles, Digital
Heating mantles are used to uniformly heat liquids placed in round bottom flasks. Insert the external probe in the liquid solution and measure/control the temperature of liquid directly with these highly accurate digital heating mantles.
Features:
- Measure and control the temperature of liquid directly
- For use with round bottom flasks
- Outer body is made from powder coated rolled aluminium
- Glass fibre yarn knitted heating element provides uniform heating to flask
- Precise temperature control with PID controller
- LED display for showing actual and set temperature
- Temperature probe PT100
- Includes support rods and boss head
- With non-slip rubber feet
Technical Specifications:
- Temperature range: Ambient + 5°C to 350°C, Resolution 0.1°C
- Temperature accuracy ± 0.5°C
- Overload protection
- Input voltage: 220 V AC ± 10%, 50-60 Hz
- CE certified
Note: The heating element cording may be slightly brown in color. This is a result of testing during the QC process.
| Capacity, ml | 100, 1000, 2000, 250, 3000, 50, 500, 5000 |
|---|---|
| Rating, W | 150, 200, 300, 450, 60, 600 |
| Pack Size | 1 |
Related Products
SKU: CH11161
Heating Mantles, Analog
Heating mantles are used to uniformly heat liquids placed in round bottom flasks.
Features:
- Heat liquid solutions placed in round bottom flasks
- For use with round bottom, flasks
- Outer body is made from powder coated rolled aluminium
- Glass fibre yarn knitted heating element provides uniform heating to flask
- Heat is controlled with in-built electronic circuit card
- Includes support rods and boss head
- With non-slip rubber feet
Technical Specifications:
- Temperature range of heating surface: Ambient + 5°C to 350°C
- Overload protection
- Input voltage: 220 V AC ± 10%, 50-60 Hz
- CE certified
Out of stock
SKU: CH11162
Heating Mantles, Multi-position
Multi position heating mantles are used to heat multiple round bottom flasks simultaneously.
Features:
- Available in 3 and 6 positions
- Space saving design
- Outer body is made of powder coated mild steel
- Glass fibre yarn knitted heating element provides uniform heating to flask
- For use with round bottom flasks
- Each position has an independent heat control knob
- Heat is controlled with in-built electronic circuit card
- Includes support rods and boss heads
- With non-slip rubber feet
Technical Specifications:
- Temperature range of heating surface: Ambient + 5°C to 350°C
- Overload protection
- Input voltage: 220 V AC ± 10%, 50-60 Hz
- CE certified
Note: The heating element cording may be slightly brown in color. This is a result of testing during the QC process.
Out of stock
SKU: CH11172
Heating Mantle with Stirrer, Analog
Analog heating mantle with stirrer are used to simultaneously heat and stir liquid solutions placed in round bottom flasks.
Features:
- Heat and stir liquid solutions simultaneously
- For use with round bottom flasks
- The outer body is made from powder coated rolled aluminium
- Glass fibre yarn knitted heating element provides uniform heating to flask
- Stirring is done using a magnetic bar
- Integrated electronic circuit card for heating and stirring
- Includes support rods and boss heads
- With non-slip rubber feet
Technical Specifications:
- Stirring speed: Upto 1200 RPM
- Temperature range of heating surface: Ambient + 5°C to 350°C
- Overload protection
- Input voltage: 220 V AC ± 10%, 50-60 Hz
- CE certified
Note: The heating element cording may be slightly brown in color. This is a result of testing during the QC process.
Out of stock
SKU: CH11172D
Heating Mantle with Stirrer Digital
Digital heating mantle with stirrer are used to simultaneously heat and stir liquid solutions placed in round bottom flasks. Insert the external probe in the liquid solution and measure/control the temperature of liquid directly.
Features:
- Stir and measure/control the temperature of liquid directly
- For use with round bottom flasks
- Outer body is made from powder coated rolled aluminium
- Glass fibre yarn knitted heating element provides uniform heating to flask
- Precise temperature control with PID controller
- LED display for showing actual and set temperature
- Temperature probe PT100
- Stirring is done using a magnetic bar
- Includes support rods and boss head
- With Non-slip rubber feet
Technical Specifications:
- Stirring speed: Upto 1200 RPM
- Temperature range: Ambient + 5°C to 350°C, Resolution 0.1°C.
- Temperature accuracy ± 0.5°C
- Overload protection
- Input voltage: 220 V AC ± 10%, 50-60 Hz
- CE certified
Note: The heating element cording may be slightly brown in color. This is a result of testing during the QC process.
Out of stock
SKU: CH11160C
Fabric Heating Mantle Controller
Control the heat output of the fabric heating mantles with this controller.
Features:
- For use with fabric heating mantles
- Compact and safe design
- Adjustable knob for heat control
- Up to 1.6 kW load can be controlled
- Input voltage: 220 V AC ± 10%, 50-60 Hz
- CE certified
SKU: CH11160
Fabric Heating Mantles
Fabric heating mantles provide even heating to round shaped vessels. They provide maximum surface coverage for better temperature uniformity. Fabric heating mantles require a controlled electrical power source to prevent from overheating.
Features:
- For use with round bottom flasks
- Fabric construction
- Glass fibre yarn knitted mantle provides sustainable and uniform heating to flask
- Reduces the chance of thermal shocks and damage to glassware
- Space saving design
- Requires fabric heating mantle controller, CH11160C/2 (not included)
Technical Specifications:
- Temperature range of heating surface: Ambient + 5°C to 350°C
- CE certified
Note: The heating element cording may be slightly brown in color. This is a result of testing during the QC process.
