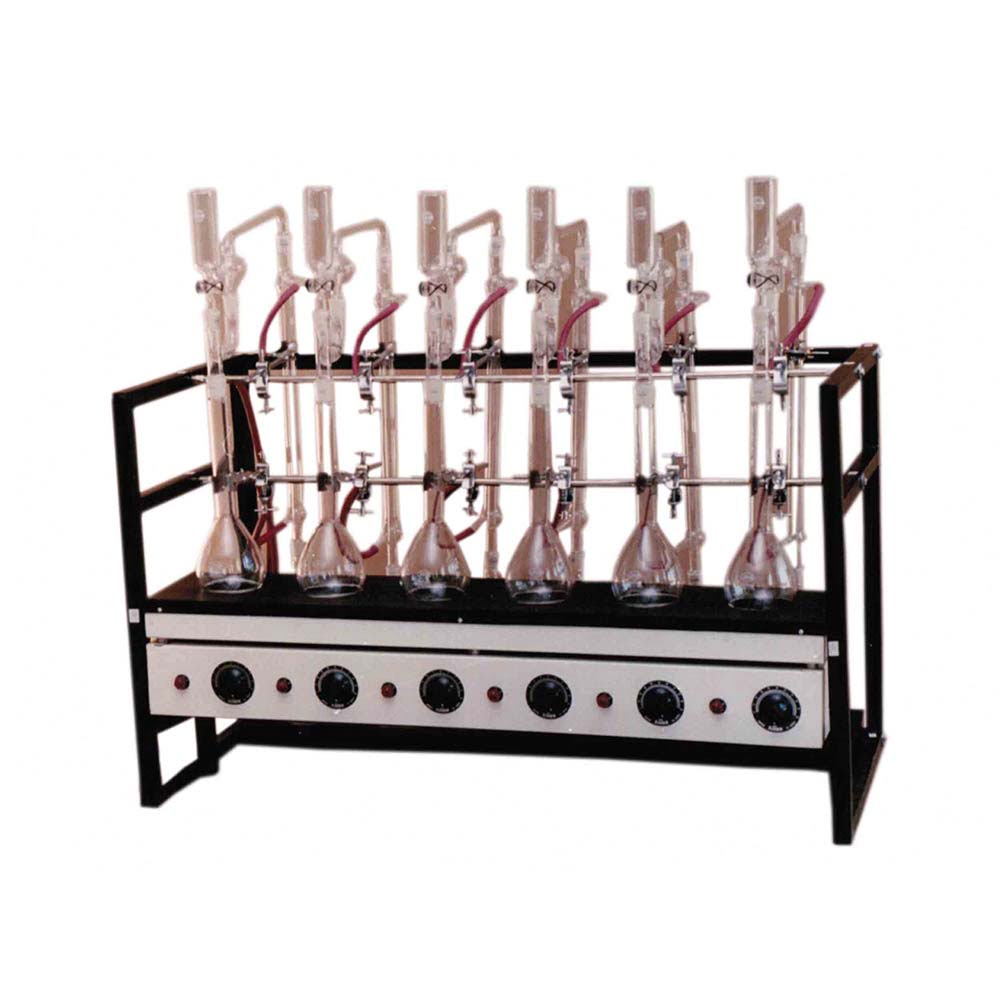

Soxhlet Extraction Heating Unit
Unit comprises a compact box section of mild steel housing, Heating mantles consist of coiled element supported by glass yarn net. These flexible units ensure close contact with flask surface and even distribution of heat. The housing has two vertical and two horizontal rods with clamps to fix glass apparatus. Each heating mantle is provided with an energy regulator and indicator lamp. Without glass parts.
| Description | Unit of three mantles, 375 watt, Unit of six mantles, 750 watt, Glass Parts for above |
|---|
Related Products
SKU: CH14030
Water Still
Easy to use, safe to operate and is designed for trouble free continues operation. Suitable for general laboratory use.
Features:
The still produces 4 litres/hr of distilled water through a 3 kW heater housed in a horizontal borosilicate glass boiler.
Boiler & Condenser: Are made of heat resistant borosilicate glass and are designed for high efficiency, boiler is with PTFE stopcock for easy cleaning. All plumbing connection are through screw thread connectors.
Stand: Powder coated for long rust free life.
Heater: 3 KW chromium plated heater fitted with a thermostat.
Output: Approx 4 ltrs/ Hrs.
SKU: CH14042
Mono Quartz Distillation Units
- Mono quartz distillers being very compact and the construction material being high purity quartz, it meets the standard of the analytical laboratory where purity of distilled water free from metallic ions and bacteria is criteria.
Construction
- The boiler is made of high purity quartz and the condenser is of borosilicate/quartz material. The built in heater provides minimum
loss of heat and production of distilled water in 2-3 minutes. The unit is mounted on a powder coated metal stand with electrical
connections and is easy to dismantle and assemble the unit. Fibre glass insulated wire and silicone rubber boot resists high
temperatures
Features
- Quartz boiler
- Condenser is available in borosilicate and quartz material.
- Distilled water output in 2-3 minutes.
- Pyrogen free, free of heavy metals.
- Efficient borosilicate/quartz coil condenser.
- Can be easily converted to bi-distillation apparatus.
- Powder coated stand for rust free operation.
- Safety cut off device is optional
Distillate Quality
- Conductivity:
3.0 μS/cm with Borosilicate Condenser
2.0 μS/cm with Quartz Condenser - Distillate Temperature: 30 to 45 °C
- Distilled Water Quality: Pyrogen Free
* Indicates 3 Phase connection
SAFETY CUT OFF DEVICE IS OPTIONAL
Safety cut off Device
SKU: CH14045
Double Quartz Distillation Units
- Quartz distillation units are manufactured from imported fused quartz tubes. The exceptionally high chemical purity and very low solubility of this material enables the production of very high performance system. The greatest possible attention has been taken for technical performance, simplicity of use and efficiency.
Construction
- The unit consist of a primary boiler with built-in heater enclosed in a quartz boiler. Upper boiler has a built-in quartz coil and condensing unit which is mounted on the boiler. Double wall condenser ensures separate condensation of vapor coming from the two boilers using a single cooling circuit.
Features
- Quartz boiler
- Quartz condenser
- Distilled water output in 2-3 minutes.
- Pyrogen free, free of heavy metals.
- Powder coated stand for rust free operation.
- Safety cut off device is included.
Distillate Quality
- Conductivity: < 1.0 μS/cm
- Distillate Temperature: 65 to 75°C
- Distilled Water Quality: Pyrogen Free
* Indicates 3 Phase connection
SKU: CH14033
Water Still, Advanced
Water Stills are used in laboratory to provide an on-demand supply of distilled water. It removes the charged ions, the water still can filter out non-volatile organic compounds, microbes, minerals and chemicals.
Salient Features
- This all-glass water still with silica-sheathed heaters and high-efficiency condenser ensures top d istillate purity at an economical price.
- A reservoir level control feature automatically turns off the heater when the r eservoir is full p reventing any overflow.
- Two independent safety thermostats, mounted in the condenser and boiler prevents overheating in the event the water supply is
interrupted. - Easily and safely change the hoses without the risk of breaking any glassware using the screw thread connections.
Specifications
- Output – 4 liters/hrs., single distilled
- pH – 5.0-6.5
- Conductivity μScm-1 – 1.0-2.0
- Resistivity, mOhm-cm – 0.5 – 1.0
- Temperature – 25 – 35°C
- Pyrogen content * – Pyrogen free
- Water supply – 1 liters/min, 3 – 100psi, (20-700kPa)
- Electricity supply – 220 or 240V, 50-60Hz, single phase
- Power requirement – 3kW
- Dimensions (w x d x h) – 590 x 160 x 410mm
- Type (H2O Purification) – Water Still
- Feedwater Source – Pretreated Water, Tap/Potable
Quality Construction
- Wall mountable mild steel stand.
- Powder Coated exterior.
- Glass silica sheathed heaters.
