| SKU | Pack Size | Cone Size | Total Length (mm) | Approx O.D (mm) |
|---|---|---|---|---|
| 25.235.0005 | 12 | 10/19 | 135±5 | 8 |
| 25.235.0010 | 12 | 14/23 | 135±5 | 13 |
| 25.235.0015 | 12 | 19/26 | 140±5 | 17 |
| 25.235.0020 | 12 | 24/29 | 170±10 | 22 |
| 25.235.0025 | 12 | 29/32 | 174±10 | 26 |
| 25.235.0030 | 12 | 34/35 | 190±15 | 30 |
If you require bulk quantities, ongoing supply or customer-specific pricing, our team can help.
Speak with us about trade pricing, regular orders and tailored quotes for your laboratory requirements.
| Material | Borosilicate Glass 3.3 |
| Form | Double Cone, One at Each End |
| Scale | Not Applicable |
| Standard | ISO 383 / DIN 12249 |
| Features | Dual Cone Ends, Multiple Joint Sizes, Size-Specific Dimensions, Double-Ended Configuration |
| Applications | Interchangeable Glassware, Laboratory Joint Assemblies, Double-Ended Connections |

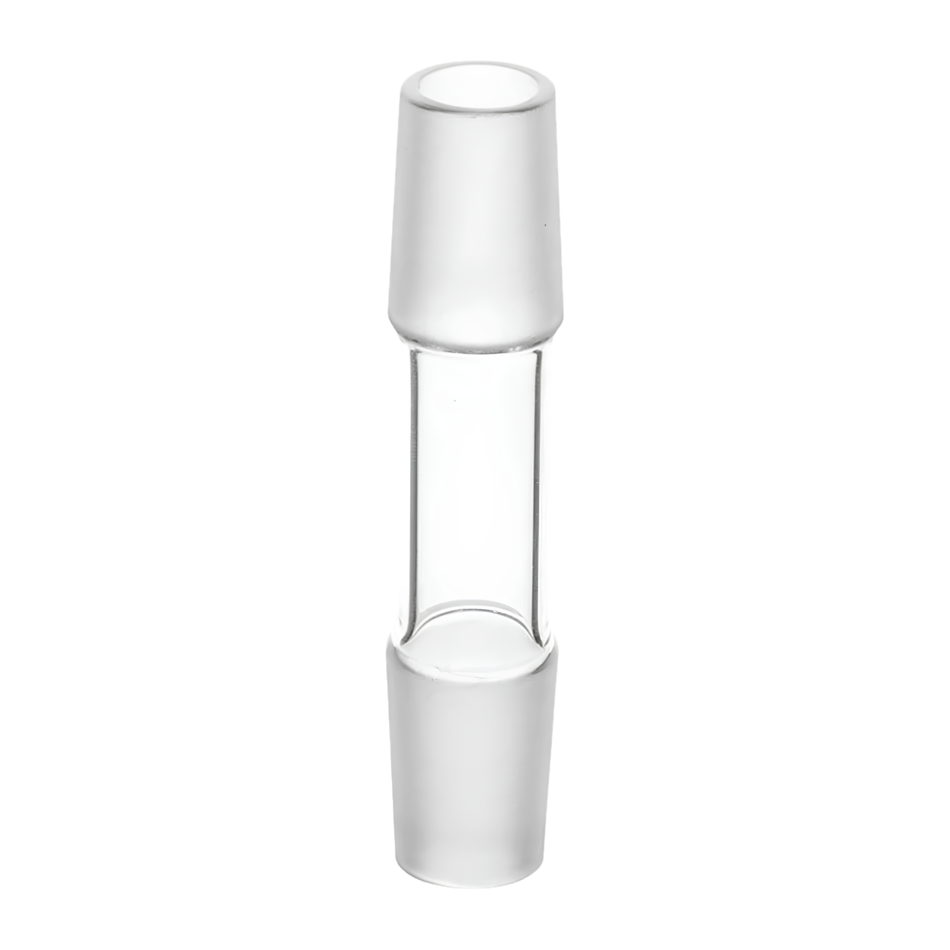

The Cone Double (One at Each End) is designed for laboratory glassware assemblies requiring cone connections at both ends. It conforms to ISO 383 / DIN 12249 standards and is available in cone sizes from 10/19 to 34/35. Total lengths range from 135 ±5 mm to 190 ±10 mm, depending on the selected size.
