A hotplate magnetic stirrer is often treated as a basic bench item, yet the wrong unit can slow sample preparation, produce inconsistent mixes or create avoidable safety concerns. For laboratories handling routine solutions, reagents, media, environmental samples or process-control work, selecting the correct combination of heating capacity, stirring performance and vessel compatibility matters to both results and throughput.
The best choice is not necessarily the unit with the highest temperature or speed rating. It is the one that performs consistently with the volumes, viscosities, vessels and operating conditions used in your laboratory every day.

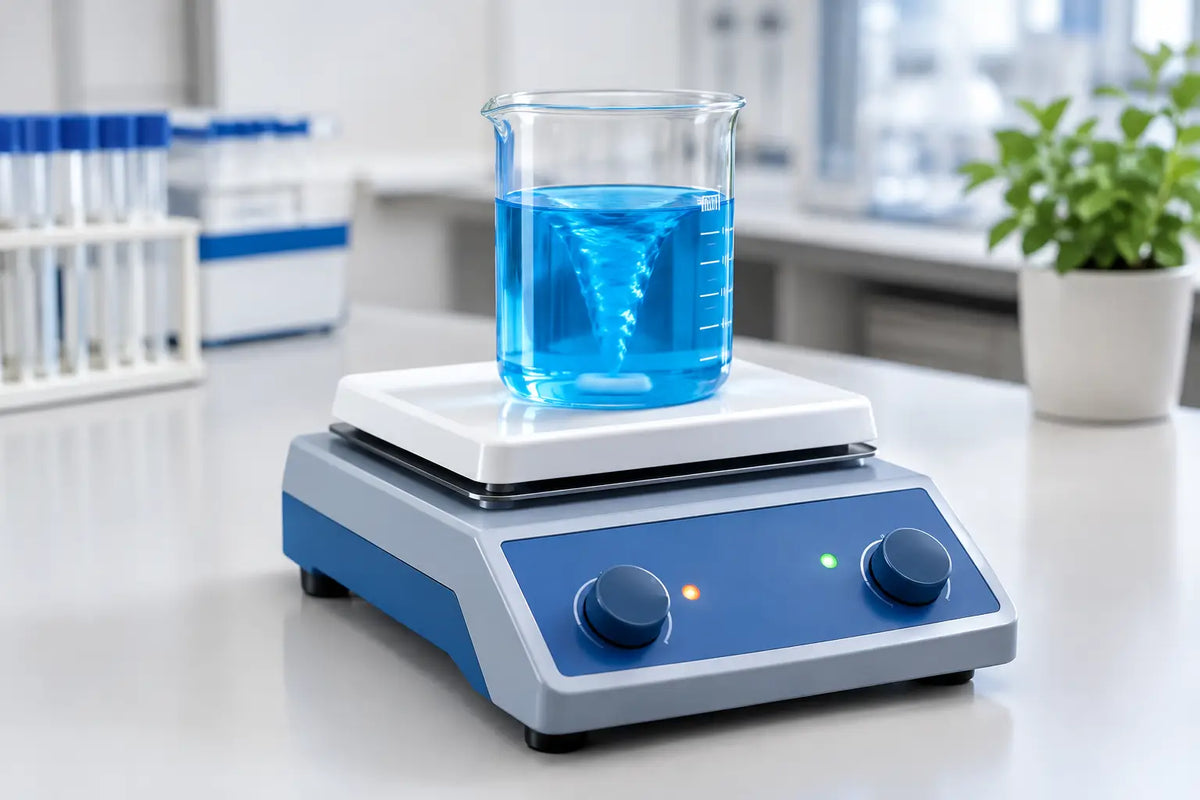

What a hotplate magnetic stirrer does
A hotplate magnetic stirrer combines two functions in one compact instrument. The heating plate applies controlled heat to a vessel, while a rotating magnetic field beneath the plate drives a PTFE-coated stir bar inside the liquid. This allows samples to be heated and mixed without inserting a mechanical shaft or paddle into the vessel.
This arrangement is useful where contamination control, repeatability and efficient preparation are priorities. Common applications include dissolving salts and powders, preparing buffers and standards, mixing culture media, maintaining homogeneous reagent solutions and supporting titration or filtration preparation.
The method does have limits. Magnetic stirring is most effective with low-to-medium viscosity liquids and appropriately sized vessels. Thick slurries, highly viscous materials or mixtures containing large solids may require an overhead stirrer instead. Attempting to force a magnetic stirrer beyond its practical capacity can cause the stir bar to decouple, resulting in uneven mixing and unnecessary wear on the equipment.
Match stirring capacity to the real workload
Stirring capacity is usually expressed as a maximum volume, but this figure should be read as a guide rather than a guarantee for every application. A unit rated for several litres may handle water well at that volume, while struggling with a smaller quantity of viscous solution.
Consider the routine batch size, not only the largest vessel likely to appear on the bench. For regular work with 100 mL to 1 L flasks or beakers, a compact unit with stable low-speed control may be more suitable than a larger platform designed for occasional bulk preparation. Where laboratories commonly prepare 2 L, 5 L or larger volumes, the plate size, magnetic drive strength and maximum load become more significant.
Vessel shape also affects performance. Flat-bottomed borosilicate glass beakers and conical flasks generally couple well with a stir bar. Round-bottom flasks and uneven vessel bases may need a support arrangement or a unit designed for that geometry. The vessel should sit securely and centrally on the plate, with sufficient clearance for safe handling when hot.
Stir bars should be selected to suit the vessel diameter and liquid volume. An oversized bar can throw or chatter, while an undersized one may create only a small vortex and leave areas of poor circulation. PTFE-coated bars are widely used because they offer good chemical resistance and are easy to clean, but they should be inspected and replaced if the coating becomes damaged.
Heating control and temperature range
Heating performance should be assessed in terms of control, uniformity and safety, not simply maximum temperature. Most routine laboratories need enough heat to warm aqueous solutions, dissolve reagents or maintain sample temperature. A very high maximum setting is less useful if the controls are difficult to adjust or the plate produces uneven heating across the vessel base.
For work that relies on a defined liquid temperature, a hotplate magnetic stirrer with an external temperature probe is often the better option. The probe measures the sample rather than the plate surface, allowing the controller to respond to the actual solution temperature. This can be particularly valuable for temperature-sensitive media, controlled reactions and methods where overheating may affect results.
A probe does not remove the need for good laboratory practice. Probe placement, stir rate, vessel size and liquid volume all influence the measured temperature. Users should allow sufficient time for the sample to equilibrate and verify performance as part of method set-up where temperature is critical.
Ceramic and aluminium heating surfaces each have practical advantages. Ceramic tops are generally valued for chemical resistance and their ability to operate at higher temperatures. Aluminium surfaces often heat and cool more quickly and provide good temperature distribution. The appropriate choice depends on the chemicals used, the required temperature range and the laboratory’s cleaning regime.
Controls that support repeatable work
Analogue controls are straightforward and may suit uncomplicated routine tasks. They allow an operator to adjust heat and stir speed quickly, often at a lower acquisition cost. Their limitation is that dial positions do not always translate into a precise, repeatable setpoint between users or instruments.
Digital models provide clearer control of speed and temperature, which can improve consistency across repeated batches and shifts. Some units include timers, programmable heating profiles, temperature-probe input and safety alarms. These features are worthwhile when procedures need closer control, but they also add cost and should be matched to an actual method requirement.
For quality-control and regulated environments, look beyond the display accuracy. Confirm how the instrument is calibrated, whether temperature verification can be documented, and what internal quality procedures apply to the laboratory. A reliable hotplate magnetic stirrer supports repeatable operation, but it does not replace method validation or equipment checks.
Safety considerations at the bench
Heating and agitation introduce hazards that should be considered before purchase. A clear indication that the surface remains hot after switch-off is particularly useful in shared laboratories, where another user may approach the instrument before the plate has cooled. Over-temperature protection can also reduce the risk of uncontrolled heating if a fault occurs.
Chemical compatibility is equally important. Spills of corrosive reagents should be cleaned promptly according to site procedures, and the selected top surface should suit the substances routinely handled. Avoid using a standard hotplate stirrer for flammable solvents unless the laboratory risk assessment and equipment suitability specifically permit it. Heating volatile flammable liquids requires appropriate controls, ventilation and equipment selected for the hazard.
The electrical environment should not be overlooked. Position the unit on a stable, level bench away from sink splash zones and crowded work areas. Ensure the power lead is protected from hot surfaces and that operators can access the controls without reaching over heated vessels.
A practical specification for purchasing teams
When comparing models, purchasing teams can obtain more useful quotes by defining the application rather than requesting a general-purpose stirrer. Record the normal and maximum vessel volumes, anticipated liquid types, viscosity range, desired temperature range, preferred top material and whether external temperature control is required.
It is also worth specifying the available bench footprint and power requirements. A larger plate may be technically capable but unsuitable for a crowded preparation area. Conversely, purchasing undersized equipment to save bench space can create a bottleneck where multiple operators need to prepare solutions at once.
Serviceability and supply continuity matter for capital equipment that sees daily use. Confirm the availability of compatible temperature probes, replacement stir bars and local technical support where relevant. For laboratories standardising equipment across sites or work areas, consistent model selection can simplify user training, operating procedures and replacement purchasing.
Global Lab Supplies can assist Australian laboratories in selecting magnetic stirring equipment alongside the beakers, flasks, PTFE stir bars and general laboratory consumables needed for routine preparation work. Providing clear application details at enquiry stage helps ensure the selected unit is commercially appropriate as well as technically suitable.
Getting reliable performance from day one
Once installed, establish a simple operating approach for the instrument. Use vessels within the recommended capacity, centre them on the plate and begin stirring at a moderate speed before increasing as required. If the stir bar decouples, reduce the speed, check that the bar is correctly sized and confirm the vessel base is stable.
Keep the plate surface clean, especially after salt solutions or corrosive chemicals have been used. Inspect power leads, controls and temperature probes during routine equipment checks, and retain calibration or verification records where your quality system requires them.
A well-chosen hotplate magnetic stirrer becomes a dependable part of daily laboratory preparation rather than an item that demands constant adjustment. Selecting for the work actually performed gives technicians better control, purchasing teams clearer value and the laboratory a more reliable path from preparation to result.
