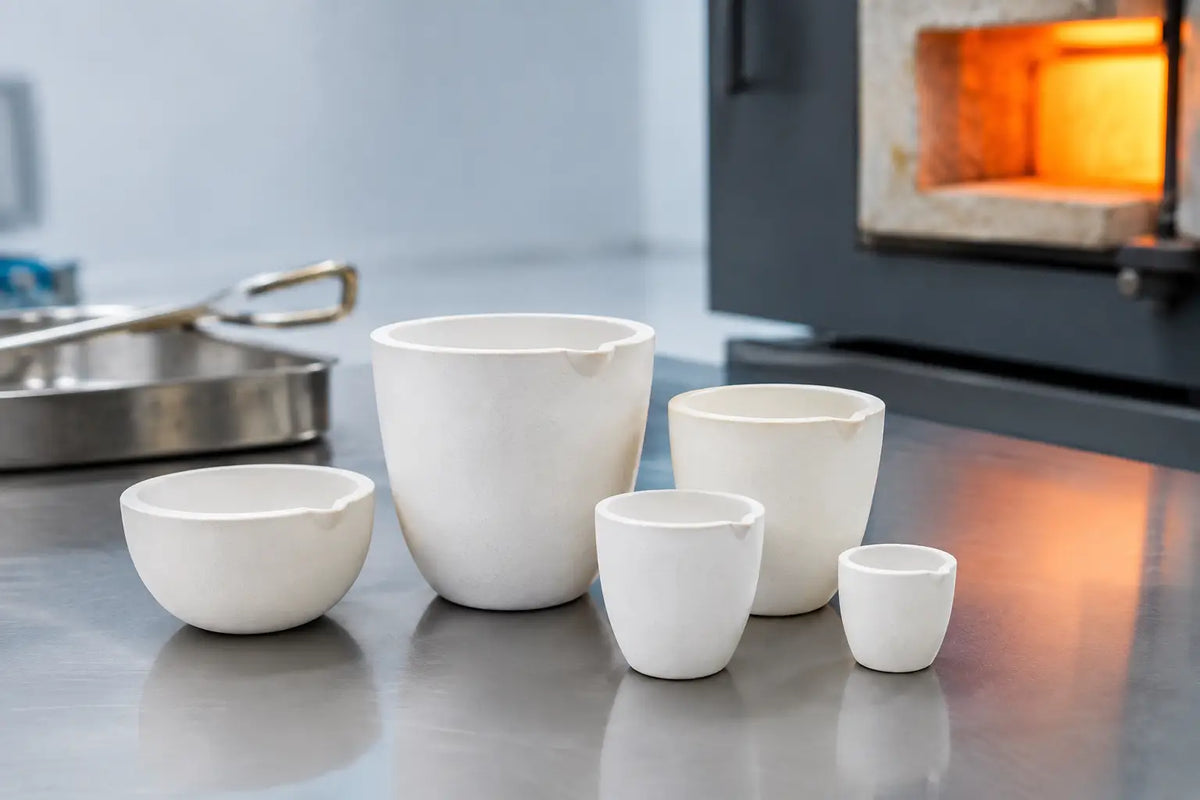

A fire assay can be technically sound on paper and still lose accuracy on the furnace floor. Fire assay crucibles are exposed to high temperatures, aggressive fluxes, molten charge and repeated handling, so their quality directly affects fusion performance, sample throughput and operator safety. For laboratories processing ores, concentrates, slags or other mineral samples, choosing the correct crucible is a practical control point, not a minor consumables decision.
What a fire assay crucible must do
In a conventional fire assay, the crucible holds the pulverised sample, flux mixture and collection reagent during fusion. The charge is heated until it becomes fluid, allowing precious metals to collect into a lead button while gangue components form a separate slag phase. The contents are then poured into a mould for cooling and subsequent separation.
That sequence places demanding requirements on the crucible. It needs sufficient refractoriness to retain its form at the operating temperature, resistance to chemical attack from the selected flux, and mechanical strength for charging, furnace loading and pouring. It must also provide consistent capacity and wall thickness from batch to batch. Variations that appear small can affect heat transfer, freeboard, slag behaviour and the risk of overflow.
Most routine fusion work uses clay-based fire assay crucibles formulated for high-temperature mineral assay applications. Their performance depends on the raw material blend, firing process, porosity, wall construction and dimensional control. A crucible is not simply a disposable container. It is part of the assay method.
Selecting fire assay crucibles for the method
The right crucible depends on the laboratory's validated assay procedure. Sample mass, flux composition, furnace operating temperature, fusion duration and expected slag volume all influence the appropriate size and grade.
Capacity should be selected with adequate freeboard. A charge that fills the crucible too close to the rim is more likely to spit, boil over or contaminate adjacent positions during fusion. This is particularly relevant where samples have high sulphide content, elevated organic matter, unusual moisture carryover or a chemistry that produces large slag volumes. Increasing crucible capacity can improve operating margin, but it may reduce furnace loading density or require changes to established furnace practice. The decision should be based on the method, not on using the largest available option.
Flux chemistry is equally significant. Borax, soda ash, silica, litharge and other additions are selected to achieve the required slag characteristics, but their combined action can be highly corrosive. A crucible suitable for a routine ore charge may not be the best choice for samples with high base-metal, sulphide or carbonate content. Where difficult matrices are common, laboratories should assess crucible performance alongside flux design rather than treating each as a separate purchasing decision.
Furnace conditions also matter. Temperature uniformity, heating rate, dwell time and crucible placement influence how the charge behaves. A sound crucible can still crack if it is subjected to excessive thermal shock, while an underfired or inconsistent crucible may soften, distort or leak under normal operating conditions. Reviewing consumable performance with furnace records often identifies whether failures arise from the crucible, the process or a combination of both.
Consistency is more valuable than a low unit price
For high-throughput laboratories, the most useful crucible is one that behaves consistently across deliveries. Variable weights, dimensions, bases or wall thicknesses can lead to uneven heating and unpredictable handling. The direct purchase price may look attractive, but savings disappear quickly if breakages, fusion repeats, furnace contamination or delayed reporting increase.
Procurement teams should therefore consider the total operating cost. A reliable specification can reduce unplanned downtime, simplify method control and make stock planning easier. It also gives technicians confidence that a replacement carton will perform like the previous one.
Common crucible failures and what they indicate
Cracking before or during fusion is one of the most visible problems. It can result from thermal shock, rough handling, moisture exposure, overfilling or a mismatch between the crucible and the fusion conditions. Crucibles should be kept dry and protected from impact during storage. If cracking is concentrated in a particular furnace zone or shift pattern, investigate loading practices and furnace temperature distribution before attributing every failure to the consumable.
Leakage or seepage through the crucible body is more serious because it can damage furnace linings, contaminate adjacent samples and create a safety issue. It may indicate excessive flux attack, insufficient crucible density, prolonged fusion or an overly fluid charge. Recording the sample type, flux recipe, furnace position and lot number will help determine whether the issue is isolated or systematic.
Slumping, softening or deformation can point to excessive temperature, an extended dwell time or inadequate refractoriness for the application. Incomplete fusion, on the other hand, does not automatically mean the crucible is at fault. Poorly mixed flux, incorrect reagent ratios, unsuitable temperature conditions or challenging sample mineralogy can all contribute. The practical approach is to review the complete fusion system.
Poor pours are another recurring source of disruption. Slag that sticks, dribbles or fails to separate cleanly can reduce recovery and complicate downstream cupellation. Charge composition is often the primary factor, but crucible shape, rim condition and handling technique also have an effect. Staff should inspect crucibles before use and remove any with visible chips, cracks or damaged rims.
Handling and storage controls that protect results
Fire assay consumables are often unpacked and used quickly, but a few simple controls can prevent avoidable loss. Store crucibles in a clean, dry area away from wash-down zones, chemical splashes and direct floor contact. If cartons are moved around the laboratory or warehouse, protect them from crushing and repeated drops. Clay crucibles can sustain damage that is not obvious until they are heated.
During charging, avoid striking crucibles against benches, scoops or furnace hardware. Keep sample and flux quantities within the method's specified limits, and use consistent mixing practice so that the charge heats evenly. When loading and removing crucibles, use suitable tongs and heat-resistant PPE, with clear separation between hot-work areas and general bench work.
It is also good practice to maintain traceability at a level appropriate to the laboratory's quality system. Recording supplier, product code, delivery date and batch or lot details can assist investigations when unusual breakage rates or fusion behaviour occur. This is particularly useful for accredited laboratories and operations processing high-value samples.
Fire assay crucibles are not cupels or moulds
Fire assay workflows use several ceramic consumables, each with a different role. The fusion crucible holds the initial charge and produces the molten lead button and slag. The mould receives the pour and shapes the cooled material for separation. The cupel is used later in cupellation, where lead is oxidised and absorbed, leaving the precious-metal bead.
These items should not be substituted for one another, even if their materials appear similar. Their porosity, shape and performance requirements are different. Clear product descriptions, standardised internal item codes and accurate ordering practices help prevent a costly error reaching the furnace room.
Building a dependable supply specification
A useful purchasing specification should be clear enough for procurement staff and specific enough for technical users. It should define the required crucible type, nominal capacity, dimensions where relevant, acceptable weight range, intended application and packaging quantity. If the laboratory uses a validated method, align the specification with the exact consumable configuration used during method development or verification.
For larger users, trialling a proposed supply against routine and difficult sample types is worthwhile. Monitor breakage, leakage, fusion completeness, pour quality and operator feedback over a meaningful number of fusions. One successful furnace run is encouraging, but it does not prove consistency across a production batch.
Supply continuity deserves equal attention. Fire assay laboratories consume crucibles steadily and cannot easily pause work when stock is delayed. Establish practical reorder points based on daily usage, lead time, storage space and seasonal demand. Consolidating commonly used crucibles, cupels, moulds, fluxes and related safety products with a specialist supplier can also reduce administrative effort while keeping technical requirements visible. Global Lab Supplies supports Australian laboratories with specialist fire assay consumables and practical assistance in matching products to operational needs.
The best time to review crucible performance is before a failure disrupts a reporting schedule. A regular check of consumption, breakage, furnace conditions and sample mix gives laboratories the information needed to keep fusion work controlled, safe and commercially efficient.
