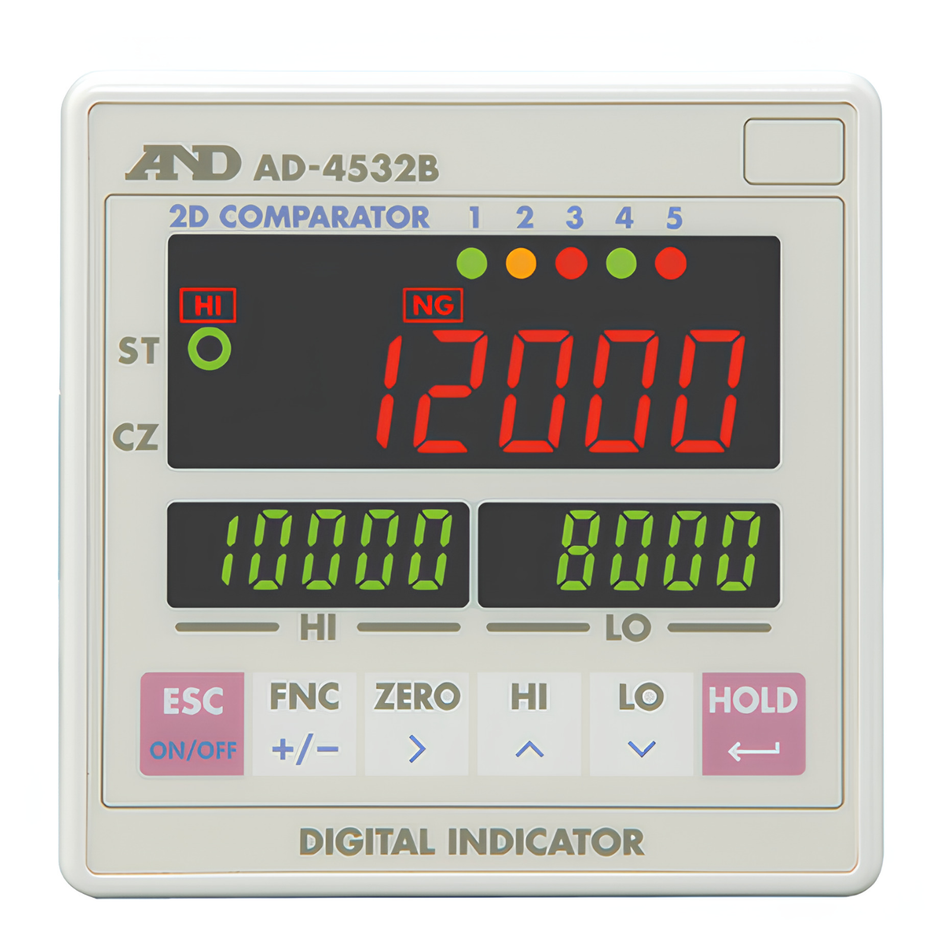

The A&D AD-4532B is a super high-speed indicator designed for product testing and evaluation. Its multicoloured display and five-level comparison function provide a clear visual indication of test results for applications involving mass torque pressure and tension.
Key Features
- High-speed weighing with 2,000 updates per second
- Tri-coloured display for immediate test-status recognition
- Five-level comparator for multi-stage testing
- Upper and lower settings displayed for quick recall of test parameters
- Four hold functions: Peak Bottom Sample and Bipolar Hold
- Analog amplifier voltage output of ±10 V
- D/A analog voltage output of ±10 V
- Comparator output and Modbus RTU I/O
- Anti-chatter function to help prevent comparator output chatter
Specifications
-
Model: AD-4532B
-
Type: Super High Speed Testing Indicator
-
Update Rate: 2,000 updates per second
-
Display: Tri-coloured display
-
Comparator: Five-level comparison function
-
Hold Functions: Peak Hold Bottom Hold Sample Hold and Bipolar Hold
-
Standard Data I/O: Analog amplifier voltage output ±10 V D/A analog voltage output ±10 V comparator output and Modbus RTU I/O
-
Dimensions: 96 × 168 × 96 mm
