| SKU | Pack Size | Effective Length (mm) | Connector | Socket Size | Cone Size |
|---|---|---|---|---|---|
| 27.223.0005 | 1 | 200 | Glass | -- | -- |
| 27.223.0010 | 1 | 300 | Glass | -- | -- |
| 27.223.0015 | 1 | 400 | Glass | -- | -- |
| 27.223.0020 | 1 | 500 | Glass | -- | -- |
| 27.223.0025 | 1 | 160. | Glass | 14/23 | 14/23 |
| 27.223.0030 | 1 | 250 | Glass | 19/26 | 19/26 |
| 27.223.0035 | 1 | 250 | Glass | 19/26 | 19/26 |
| 27.223.0040 | 1 | 250 | Glass | 24/29 | 24/29 |
| 27.223.0045 | 1 | 300 | Glass | 19/26 | 19/26 |
| 27.223.0050 | 1 | 300 | Glass | 24/29 | 24/29 |
| 27.223.0055 | 1 | 400 | Glass | 24/29 | 24/29 |
| 27.223.0060 | 1 | 400 | Glass | 24/29 | 24/29 |
| 27.223.0065 | 1 | 400 | Glass | 34/35 | 34/35 |
| 27.223.0070 | — | 600 | Glass | 34/35 | 34/35 |
| 27.223.5005 | 1 | 200 | Screw Thread | -- | -- |
| 27.223.5010 | 1 | 300 | Screw Thread | -- | -- |
| 27.223.5015 | 1 | 400 | Screw Thread | -- | -- |
| 27.223.5020 | 1 | 500 | Screw Thread | -- | -- |
| 27.223.5025 | 1 | 160 | Screw Thread | 14/23 | 14/23 |
| 27.223.5030 | 1 | 160 | Screw Thread | 19/26 | 19/26 |
| 27.223.5035 | 1 | 250 | Screw Thread | 19/26 | 19/26 |
| 27.223.5040 | 1 | 250 | Screw Thread | 24/29 | 24/29 |
| 27.223.5045 | 1 | 250 | Screw Thread | 19/26 | 19/26 |
| 27.223.5050 | 1 | 300 | Screw Thread | 24/29 | 24/29 |
| 27.223.5055 | 1 | 400 | Screw Thread | 24/29 | 24/29 |
| 27.223.5060 | 1 | 160 | Screw Thread | 24/29 | 24/29 |
| 27.223.5065 | 1 | 300 | Screw Thread | 34/35 | 34/35 |
| 27.223.5070 | 1 | 400 | Screw Thread | 34/35 | 34/35 |
If you require bulk quantities, ongoing supply or customer-specific pricing, our team can help.
Speak with us about trade pricing, regular orders and tailored quotes for your laboratory requirements.
| Material | Borosilicate Glass 3.3 |
| Form | Liebig Condenser |
| Scale | Not Applicable |
| Standard | DIN 12576 |
| Features | Conforms to DIN 12576, Standard Ground Joints, Lightweight Inner Tube for Efficient Heat Transfer, Available with Glass or Plastic Hose Connectors, Detachable Plastic Screw Thread Connectors, Non-DIN Sizes Available |
| Applications | Distillation, Reflux Operations, Vapour Condensation, Chemical Synthesis, Laboratory Research, Quality Control |

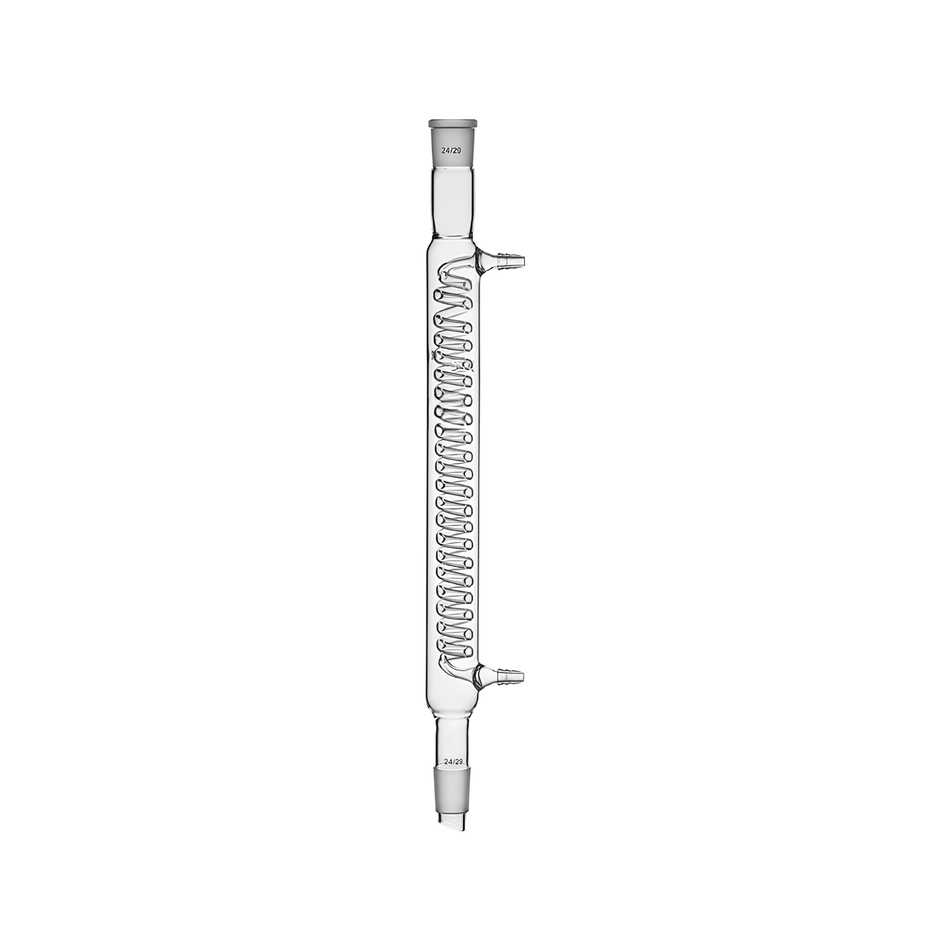

Graham Coil Condenser (Jacket Distillate Type) is designed for efficient cooling and condensation of vapours during distillation, reflux, and chemical processing. Its internal coiled condensation tube provides a significantly larger cooling surface area than straight condensers, delivering enhanced heat exchange and improved condensation efficiency, particularly for volatile solvents.
