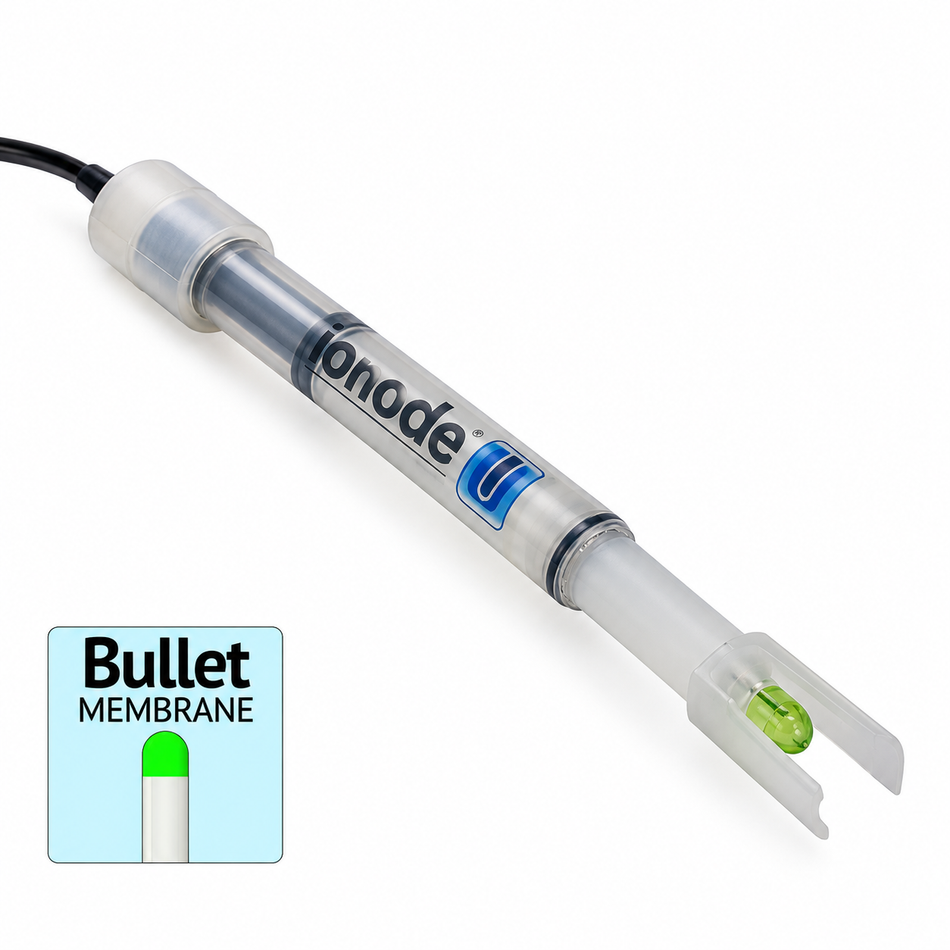

The Ionode IJ40a-HT High Temperature pH Electrode is designed for reliable pH measurement in demanding laboratory and industrial applications involving elevated temperatures. It features an A Glass bullet-shaped membrane, a PVDF (Kynar) body and a replaceable electrolyte system with a serviceable intermediate junction. Its 0–14 pH measuring range and operating temperature range of 0–100°C make it suitable for a wide range of aqueous sample testing under high-temperature conditions.
-
Brand: Ionode
-
Model: IJ40a-HT
-
Product Type: High Temperature Intermediate Junction pH Electrode
-
Applications: High-Temperature pH Measurement, Laboratory Testing and Industrial Process Analysis
-
Measuring Range: 0–14 pH
-
Membrane Type: A Glass – Bullet
-
Body Material: Polyvinylidene Fluoride (PVDF, Kynar)
-
Operating Temperature: 0–100°C
-
Junction Type: Serviceable Intermediate (Sleeve) Junction
-
Reference System: Silver/Silver Chloride (Ag/AgCl)
-
Reference Electrolyte: Potassium Chloride (KCl)
-
Electrolyte System: Replaceable; 3M KCl gel electrolyte supplied
-
Maximum Pressure Rating: 40 PSI
-
Submersible: Yes
