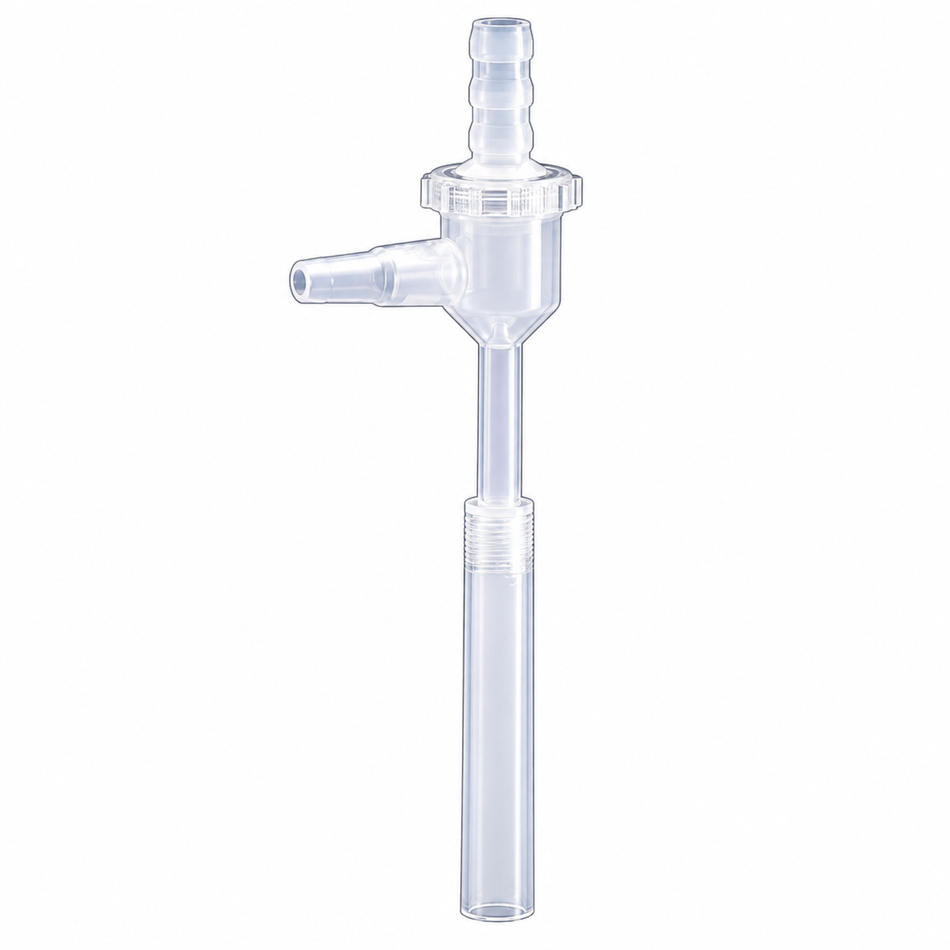

Kartell Water Jet Vacuum Pump Polypropylene

The Kartell Water Jet Vacuum Pump is a polypropylene (PP) laboratory vacuum pump designed to generate vacuum using flowing water as the motive fluid. It combines effective suction performance with low water consumption and can operate with water pressures ranging from low pressure to high pressure up to 10 kg/cm². A built-in non-return valve helps prevent water back-flow when pressure decreases. The pump is completely dismantlable for convenient cleaning and is autoclavable, making it suitable for laboratory vacuum filtration, vacuum distillation, drying and related applications.

• Applications: Vacuum Filtration, Vacuum Distillation, Laboratory Drying, Chemical Waste Suction, Laboratory Vacuum Generation
• Features: Water-Driven Vacuum Generation, Low Water Consumption, Built-In Non-Return Valve, Easy Dismantling, Autoclavable
• Form: Water Jet Vacuum Pump
• Material: Polypropylene (PP)
• Operating Water Pressure: 0.5–1 kg/cm² at Low Pressure and Up to 10 kg/cm² at High Pressure
• Water Tube External Diameter: 11.85 mm
• Vacuum Tube External Diameter: 9 mm
• Example Performance: At 1 kg/cm² Water Pressure, Approximately 15 mm Hg Vacuum in a 5 L Container with About 20 Minutes Evacuation Time
• Non-Return Valve: Built-In to Prevent Water Back-Flow
• Cleaning: Completely Dismantlable for Cleaning
• Sterilisation: Autoclavable
• Product Type: Water Jet Vacuum Pump
• Brand: Kartell
