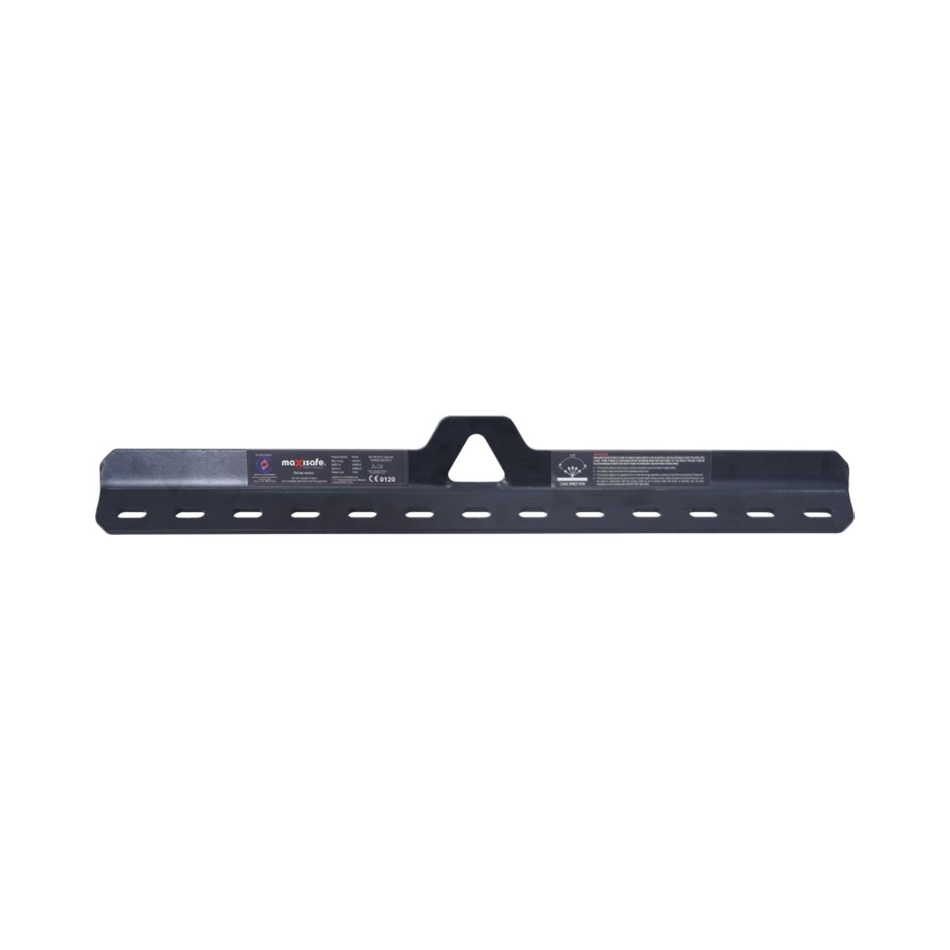

The Maxisafe T-Bar roof anchor provides quick and easy installation for roof access onto sheet metal roofs. It fits to edge of the roof sheeting and is easily secured using existing screws and holes in the sheeting. The flat bar anchor meets the requirements of AS/NZS5532 2013 and has a rating of 1 person at 15Kn. It is a 500mm fixed anchor for roof work, suitable for trapezoidal custom orb roof top and made from steel. It is not to be used in acidic or basic environments and not to be used for lifting. Fixings are required and users must read and comply with user instructions before use.
Product Features
- MAXISAFE FLAT BAR ANCHOR MEETS THE REQUIREMENTS OF AS/NZS5532 2013 and HAS A RATING OF 1 PERSON - 15Kn
- 500mm Fixed Anchor for Roof Work
- Suitable for trapezoidal custom orb roof top
- Material: Steel
- Not to be used in acidic or basic environments
- Not to be used for lifting
- Fixings required
- Read and comply with user instructions before use
Installation Requirements
- Rated for Single use only (15kN)
- Only suitable for sheet metal roofing with a minimum of 0.42m thickness in the following profiles, provided roof sheets are secured in place with roof screws as per manufacturer's instructions: Custom orb, Trimdek
- It is important to ensure that the structure in which the product is being applied to has sufficient strength to sustain the applied load
- Must be used in conjunction with an Energy Absorbing device
- Temporary anchor for any worker that needs to access rooftops such as Roofers, plumbers, servicing technicians, installers, painters
- Always refer to the User Instruction Manual prior to use
- Certified to AS/NZS 5532:2013
Anchor Standards
- AS/NZS5532 2013 Manufacturing requirements for single point anchor device used for harness based work at height
- AS/NZS1891.2 2001 Horizontal lifeline and rail systems (this standard has provision for Proprietary Systems)
- AS/NZS1891.3 1997 Fall-arrest devices (refer Section 2.3 Anchorage Lines)
