| SKU | O.D x Height (mm) |
|---|---|
| 005.100830EX | Shaft 8, End Ø 5, L 300mm |
| 005.100850EX | Shaft 8, End Ø 5, L 500mm |
| 005.101030EX | Shaft 10, End Ø 6.35, L 300mm |
| 005.101050EX | Shaft 10, End Ø 6.35, L 500mm |
| 005.101065EX | Shaft 10, End Ø 6.35, L 650mm |
| 005.101250EX | Shaft 12, End Ø 6.35, L 500mm |
| 005.101265EX | Shaft 12, End Ø 6.35, L 650mm |
| 005.101275EX | Shaft 12, End Ø 6.35, L 750mm |
| 005.1016750EX | Shaft 16, End Ø 10, L 750mm |
| 005.1016100EX | Shaft 16, End Ø 10, L 1000mm |
| 005.1019750EX | Shaft 19, End Ø 14, L 750mm |
| 005.1019100EX | Shaft 19, End Ø 14, L 1000mm |
If you require bulk quantities, ongoing supply or customer-specific pricing, our team can help.
Speak with us about trade pricing, regular orders and tailored quotes for your laboratory requirements.
| Material | Virgin-grade PTFE with stainless steel core |
| Form | Plain PTFE Shaft |
| Scale | -200°C to 260°C |
| Standard | FDA and USP Class VI |
| Features | PTFE encapsulated stainless steel core; exposed end; 30mm exposed shaft; virgin-grade PTFE; FDA and USP Class VI; chemical resistance; autoclavable |
| Applications | Shaft stirring; use with adjustable rotors; chuck-drive connection |

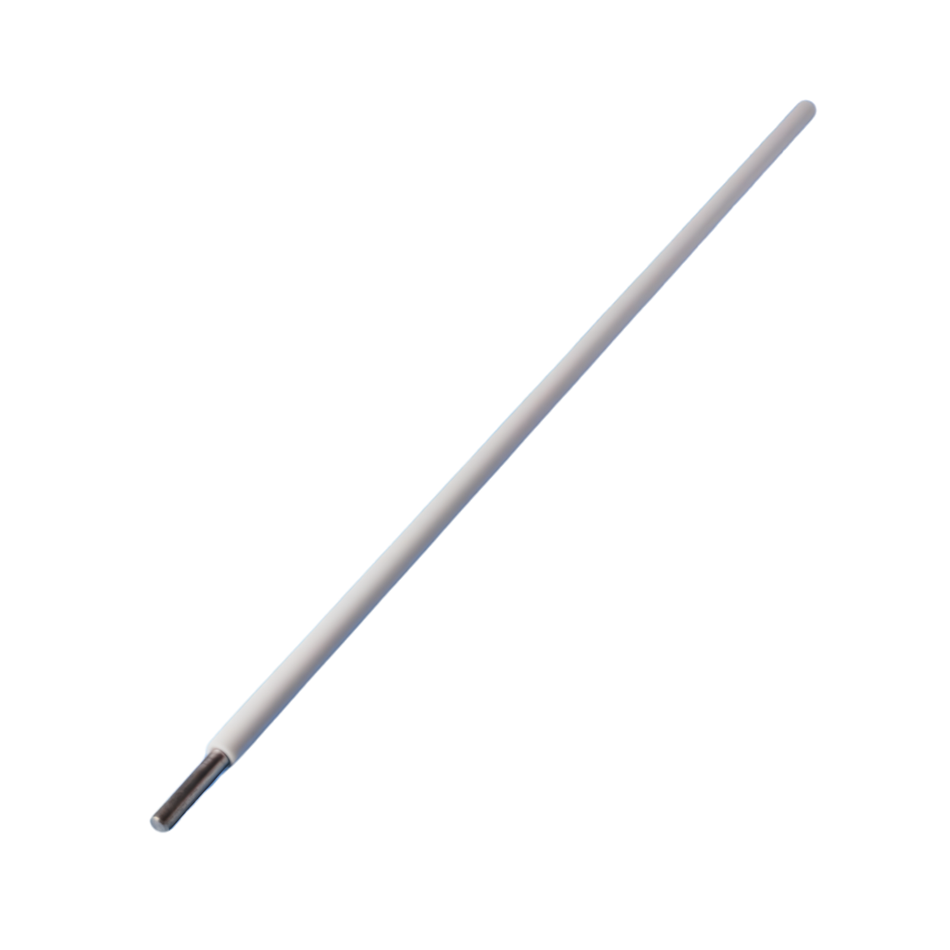

The Plain PTFE Shaft features a stainless steel core encapsulated in PTFE with an exposed end designed to provide a more rigid connection to a chuck drive. It can be used with adjustable rotors and has a 30 mm exposed shaft section. The shaft is manufactured from virgin-grade PTFE conforming to FDA and USP Class VI requirements, providing virtually total chemical resistance. It is easy to clean, robust and break resistant, with an operating temperature range of -200°C to 260°C (-328°F to 500°F).
