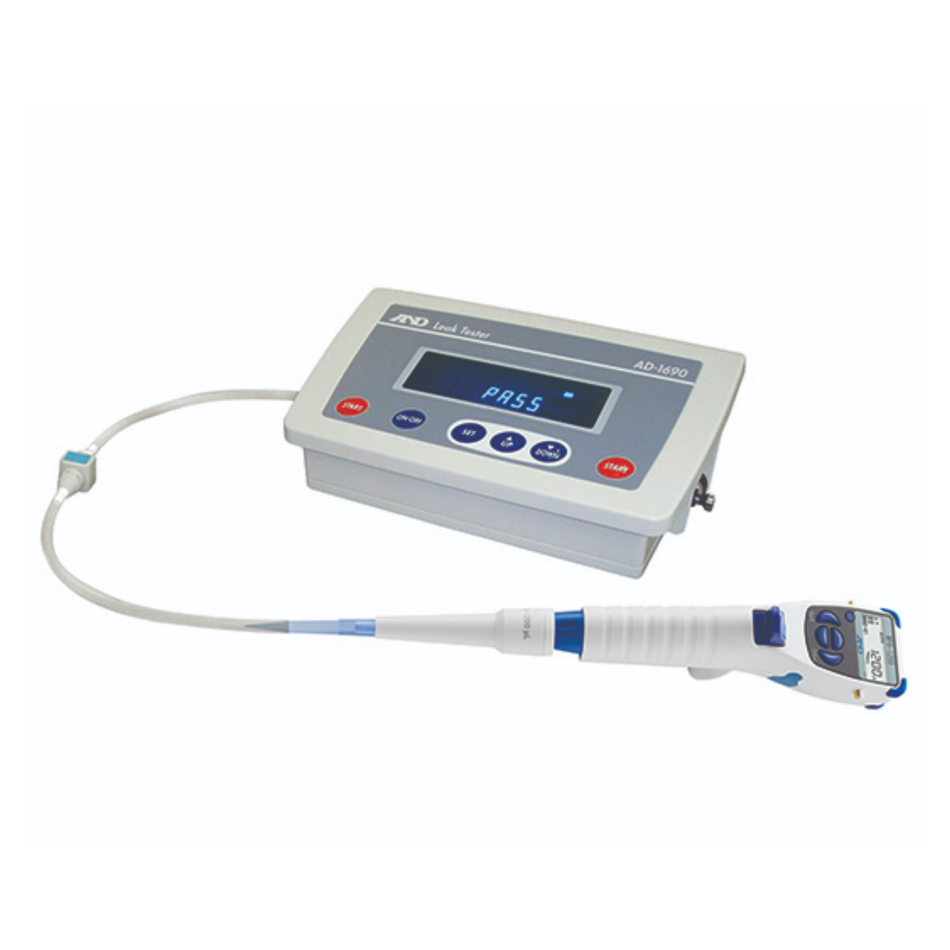

The A&D AD-1690 Pipette Leak Tester is designed to quickly identify leaks in micropipettes, small pumps, piping and storage containers. It uses a depressurisation method to assess pressure integrity, helping laboratories identify devices that may require maintenance or repair. Its compact design and RS-232C interface support routine leak screening and recording of test results.
Key Features
- Completes leak screening in less than five seconds
- Uses depressurisation to detect leaks while helping prevent dust from entering the tested device
- Replaceable air filter protects the instrument from dust drawn in during testing
- Three included attachments support pipette testing across a range of volumes
- RS-232C interface allows test results to be transferred to a compatible computer or A&D peripheral device
- Displays immediate pass or fail results to help identify devices requiring attention
- Supports routine pipette maintenance and laboratory quality-control procedures
- Five-year warranty as listed by A&D Weighing Australia
Specifications
-
Brand: A&D Weighing
-
Model: AD-1690
-
Product Type: Pipette Leak Tester
-
Test Capacity: Devices up to 50mL
-
Compatible Pipette Volume: 1µL to 10,000µL, as stated on the Australian product page
-
Depressurisation Value: -20kPa ±20% (fixed)
-
Internal Pressure Tolerance: +0.2kPa per 10 seconds
-
Leak Judgement Setting: +0.1 to +20kPa, adjustable in 0.1kPa increments
-
Monitoring Time: Adjustable; minimum setting 0.5 seconds
-
Maximum Pump Operation Time: Approximately 6 seconds
-
Dimensions: 231(W) x 126(D) x 78(H)mm
-
Weight: Approximately 570g
-
Interface: RS-232C
-
Replacement Tube Set: AD-1690-01
-
Replacement Filter Set: AD-1690-02
