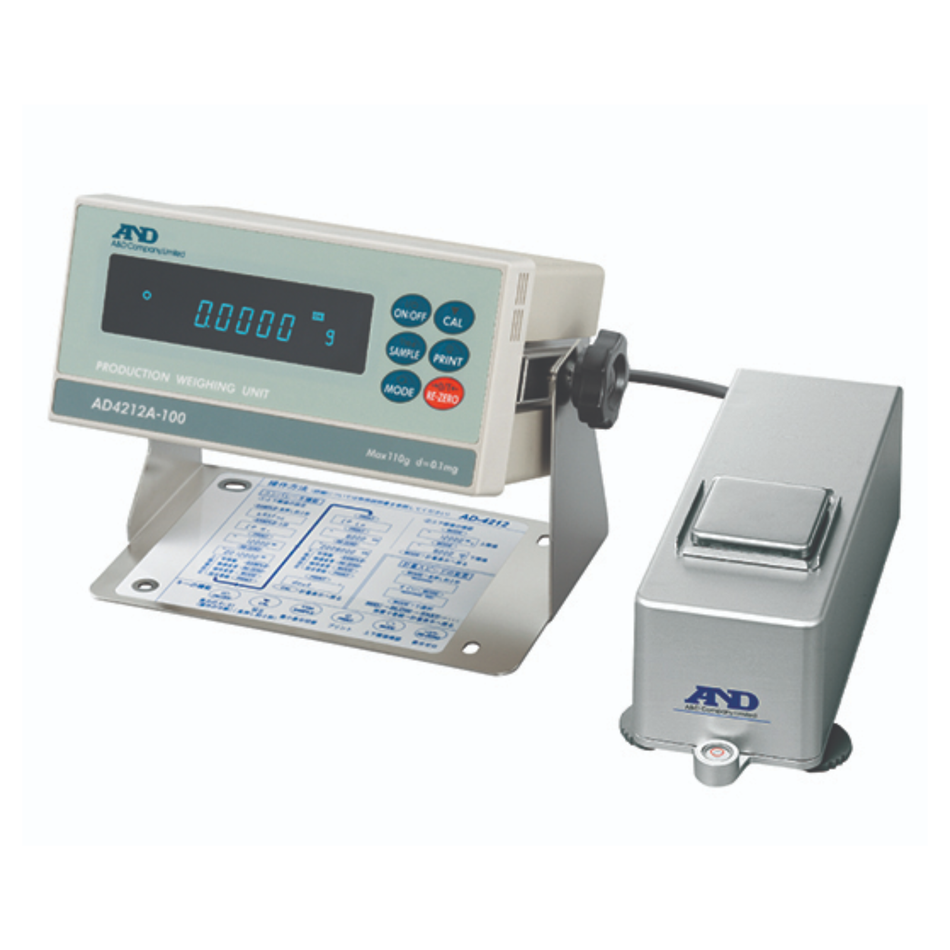

The A&D AD-4212A-100 Precision Weighing Sensor is designed for high-resolution weighing in automated production systems and laboratory applications. Using Super Hybrid Sensor (SHS) technology, it combines rapid stabilisation with a separate weighing unit and display unit, allowing integration into custom weighing equipment and compact workspaces.
Key Features
- Super Hybrid Sensor (SHS) technology for precision weighing
- Rapid stabilisation to support efficient weighing cycles
- Separate sensor and display units for flexible system integration
- Protection against vertical and transverse overloads
- Adjustable response characteristics to help manage drafts and vibration
- Comparator contact output with buzzer for checking target limits
- GLP/GMP/GCP/ISO-compliant output for weighing documentation
- Data memory, clock and calendar functions
- Counting function with Automatic Counting Accuracy Improvement (ACAI)
- Percent and animal weighing modes
- WinCT communication software supplied for weighing data acquisition
- Stainless-steel breeze break supplied with this model
Specifications
-
Brand: A&D Weighing
-
Model: AD-4212A-100
-
Product Type: Precision Weighing Sensor
-
Part Number: 06080310
-
Capacity: 110g
-
Readability: 0.1mg
-
Weighing Pan: 50 x 50mm
-
Typical Stabilisation Time: Approximately 1.1 seconds from 0–30g and 1.3 seconds from 30–110g
-
Sensor Unit Dimensions: 80(W) x 230(D) x 90(H)mm
-
Display Unit Dimensions: 237(W) x 150(D) x 155(H)mm
-
Connection Cable: Approximately 2m between sensor and display
-
Standard Interface: RS-232C
-
Power Supply: AC adaptor
