| Form | ORP Sensor |
| Scale | ±1500 mV; Resolution: 1 mV; Accuracy: ±1 mV |
| Features | Platinum disc design for fast results; double junction reduces reference contamination; factory-calibrated; integrated temperature sensor; built-in health tracking; cable sold separately |
| Applications | ORP measurement, oxidation-reduction potential, water quality testing, environmental monitoring, disinfection monitoring, industrial water testing |

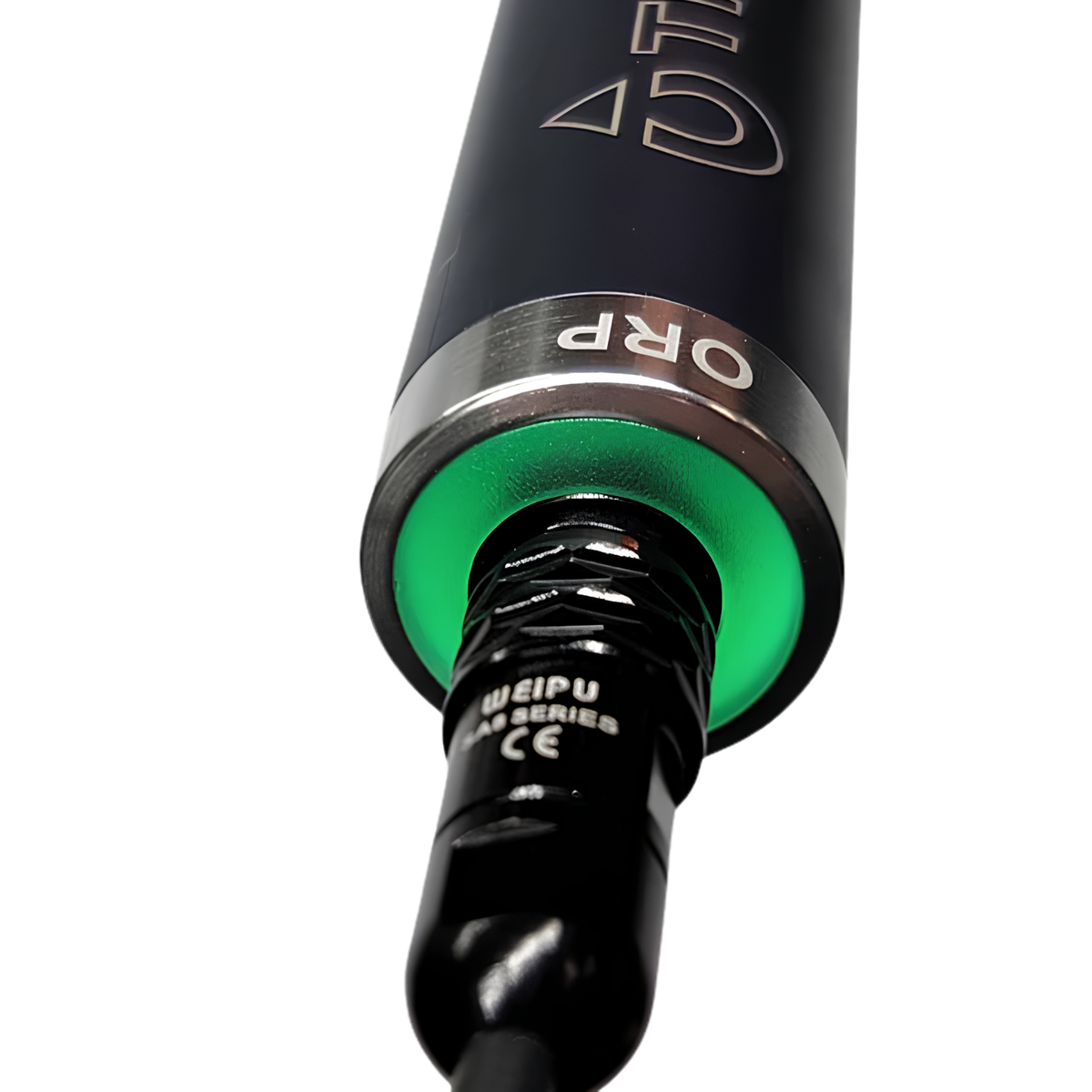

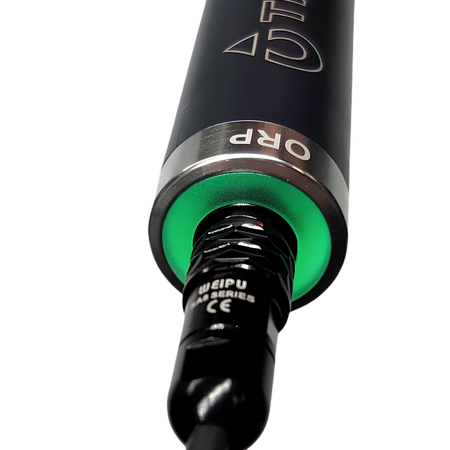

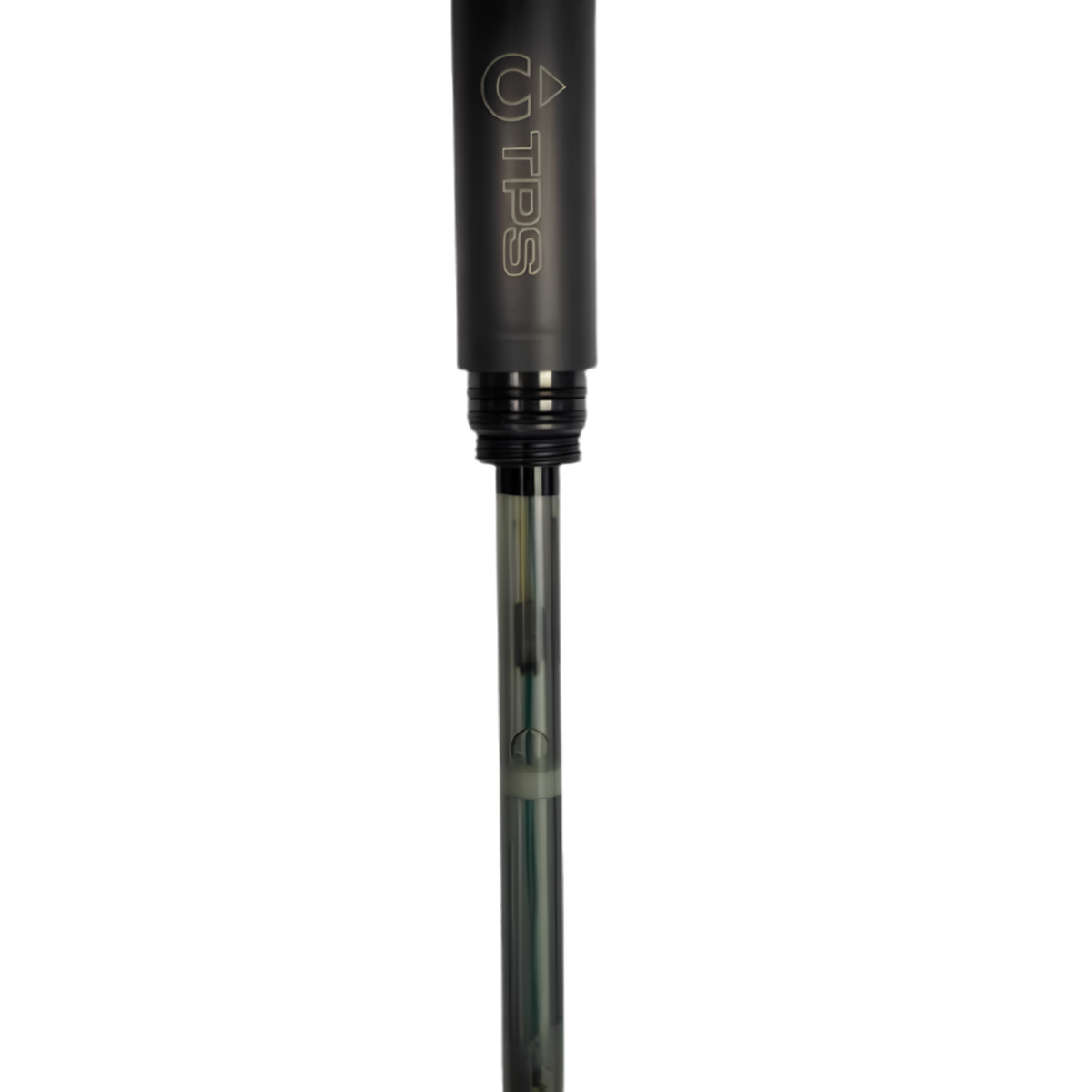

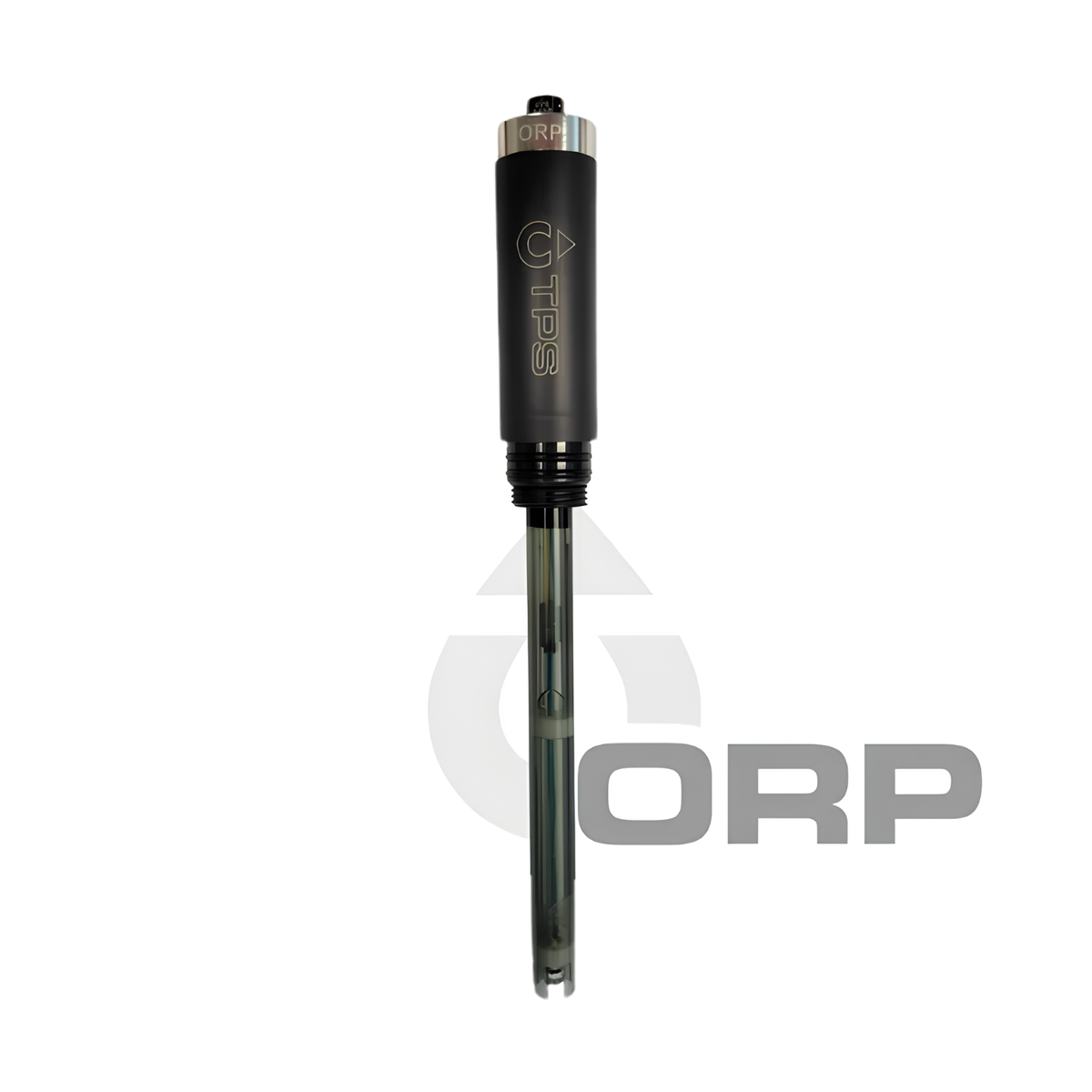

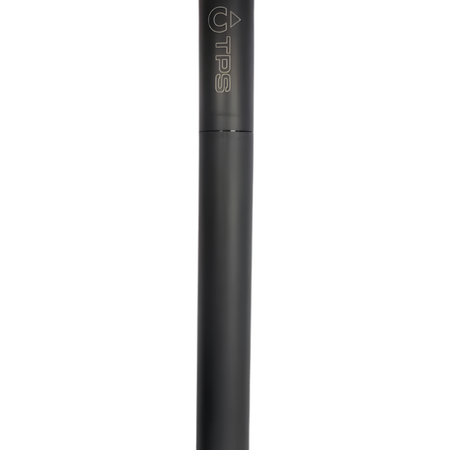

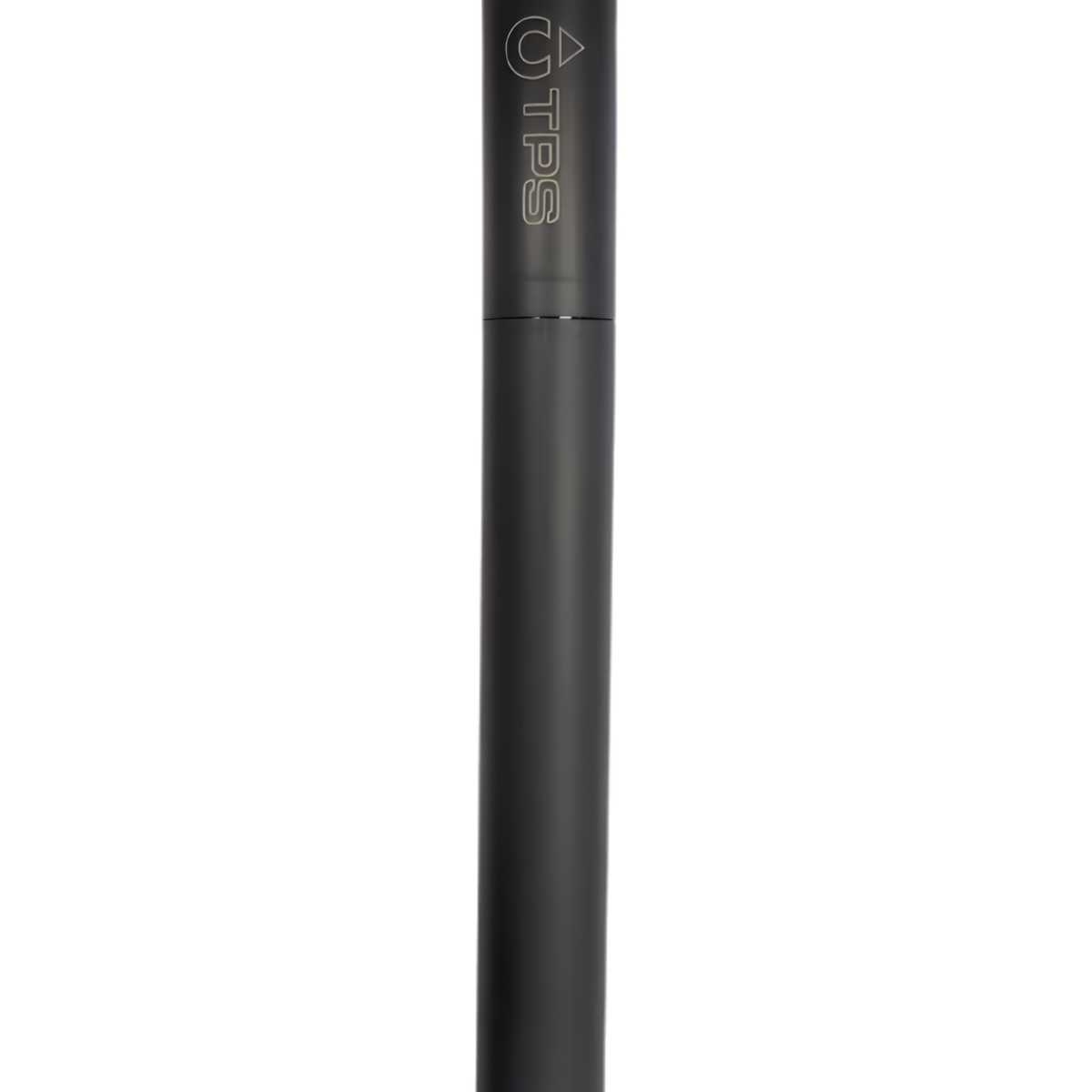

The TPS ORP-100 is an oxidation-reduction potential sensor designed for use with The Ranger portable handheld meter, featuring a platinum disc design that enables fast results with maximum surface area. Two junctions are used to reduce contamination of the reference, ensuring reliable measurements. Factory-calibrated with an integrated temperature sensor that simplifies measurement and calibration, saving time and reducing errors, while built-in health tracking provides full transparency. It offers an ORP range of ±1500 mV with a resolution of 1 mV and accuracy of ±1 mV, with a response time of less than 30 seconds to 95% of full response. The sensor type is platinum disc with double junction (ceramic & pellon) and Ag/AgCl gel reference. Cable not included; available separately in 1m, 3m, 5m and 10m lengths.
