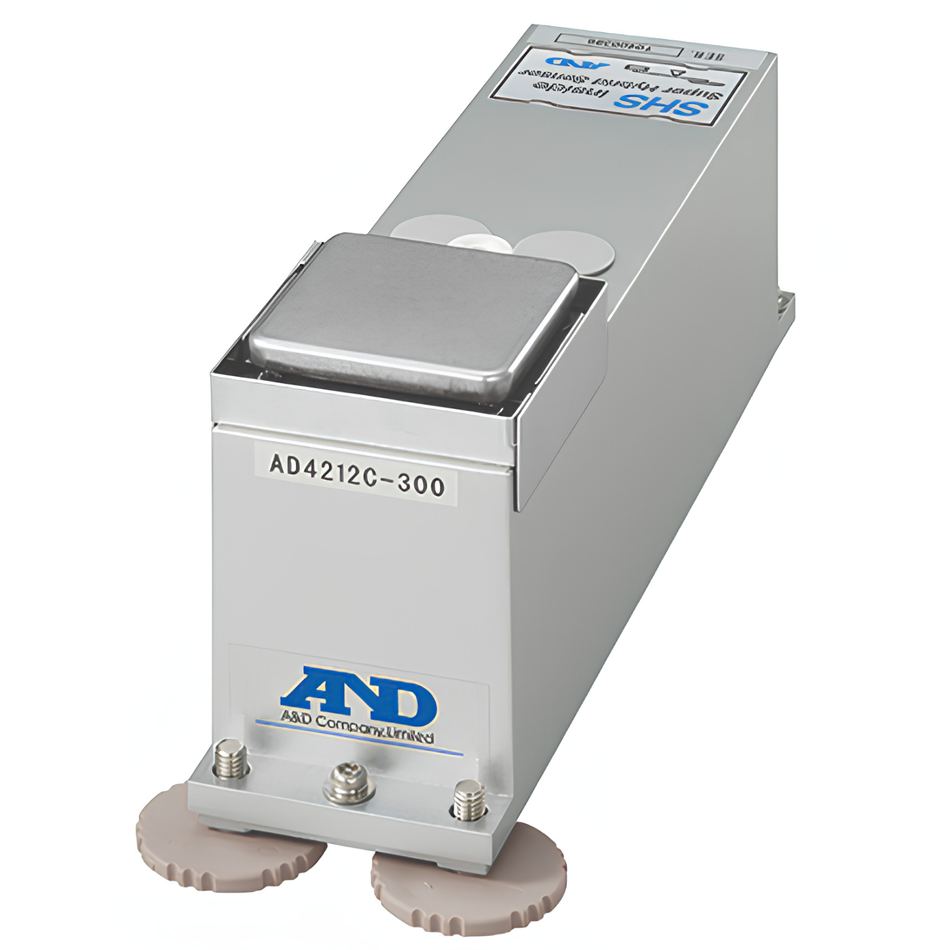

The A&D AD-4212C-300 Electromagnetic Weighing Sensor is designed for high-speed measurement in automated production systems. Its compact 59mm-wide weighing unit supports installation in restricted spaces, while its direct digital output allows weighing data to be communicated to compatible computers and control equipment.
Key Features
- Compact 59mm-wide weighing unit for space-restricted installations
- IP65 dust- and water-resistant construction
- Direct digital output to compatible computers, PLCs and panel computers
- High-speed data transmission of up to 50 readings per second
- Protection against vertical and transverse overloads
- Removable levelling feet for direct mounting to a suitable base
- WinCT-AD4212C software for calibration and response-speed adjustment
- Calibration weight included, equivalent to OIML Class E2
- Optional CC-Link communication via the AD-8923-CC remote controller
- Optional BCD output via the AD-8923-BCD remote controller
Specifications
-
Brand: A&D Weighing
-
Model: AD-4212C-300
-
Product Type: Electromagnetic Weighing Sensor
-
Capacity: 320g
-
Readability: 0.001g (1mg)
-
Repeatability: 0.001g (standard deviation)
-
Linearity: ±0.002g
-
Weighing Pan: 50 x 50mm
-
Stabilisation Time: Approximately 0.5 seconds from 0–30g and 1.0 second from 30–320g, under specified conditions
-
Sensor Dimensions: 59(W) x 231(D) x 91(H)mm
-
Sensor Weight: Approximately 1.6kg
-
Connection Cable: Approximately 10m
-
Interface: RS-232C
-
Protection Rating: IP65
-
Power Supply: AC adaptor
