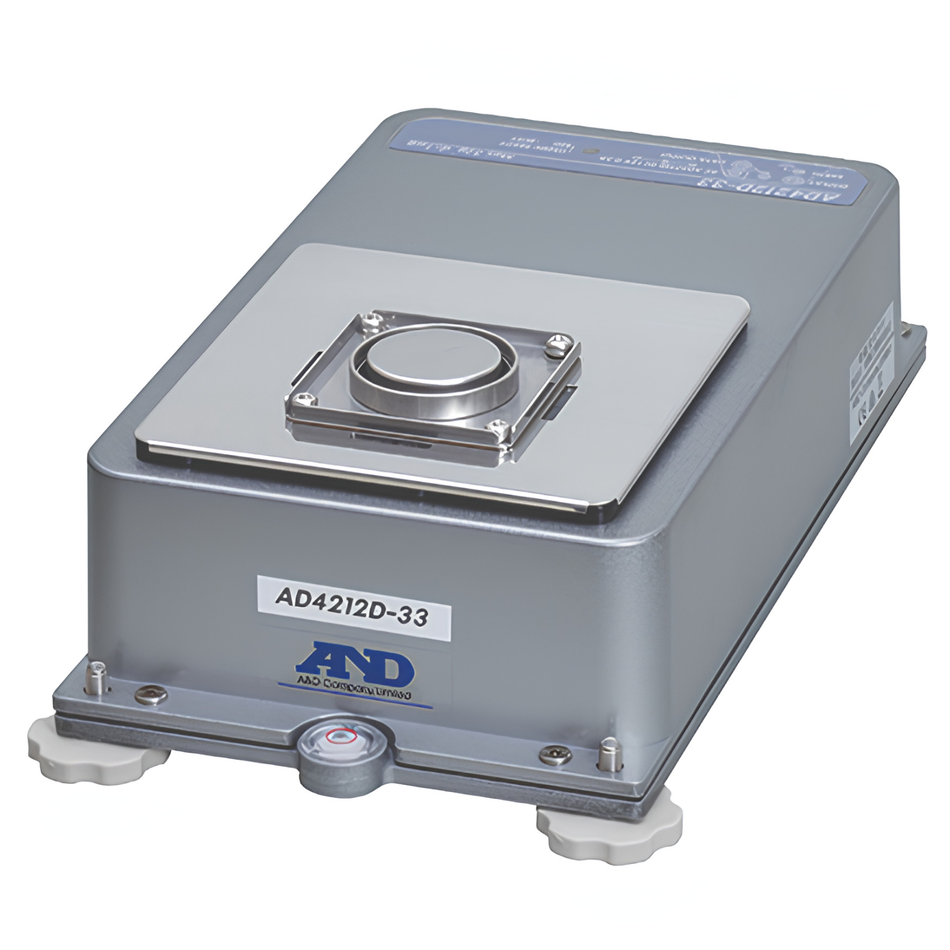

The A&D AD-4212D-33 Micro Analytical Weighing Sensor is designed for ultra-high-resolution weighing in laboratory equipment and automated production systems. Its integrated digital conversion technology enables direct communication with compatible computers and PLCs, while the compact sensor supports installation in specialised equipment and restricted spaces.
Key Features
- Electromagnetic Digital Load Cell (EM-DLC) technology for direct digital output
- Internal calibration function for convenient calibration at the touch of a key
- Shock-absorbing mechanism to protect against vertical and transverse overloads
- Compact construction suitable for glove-box installations
- Small breeze break helps reduce disturbances caused by drafts and air turbulence
- Adjustable response characteristics for different weighing environments
- Custom weighing pan or receptacle can be designed for specialised samples
- Underhook weighing capability for suitable magnetic-material and density-measurement applications
- GLP/GMP/GCP/ISO-compliant weighing output
- Built-in temperature sensor for temperature data output
- Water-resistant cap for cleaning
- AD-1691 weighing environment analyser supplied as standard
Specifications
-
Brand: A&D Weighing
-
Model: AD-4212D-33
-
Product Type: Micro Analytical Weighing Sensor
-
Capacity: 32g
-
Readability: 0.001mg (1µg)
-
Repeatability: 0.002mg (standard deviation, using a 1g mass with an automatic loading machine)
-
Linearity: ±0.02mg
-
Weighing Pan: 34mm diameter
-
Typical Stabilisation Time: Approximately 7 seconds when set to FAST under suitable conditions
-
Display Refresh Rate: 5 or 10 times per second
-
Operating Temperature: 5°C to 40°C
-
Operating Humidity: 85% RH or less, without condensation
-
Dimensions: 167.5(W) x 298(D) x 170(H)mm with breeze break; 90mm height without breeze break
-
Weight: Approximately 3.6kg, excluding the breeze break
-
Communication: RS-232C
-
Power Supply: AC adaptor
