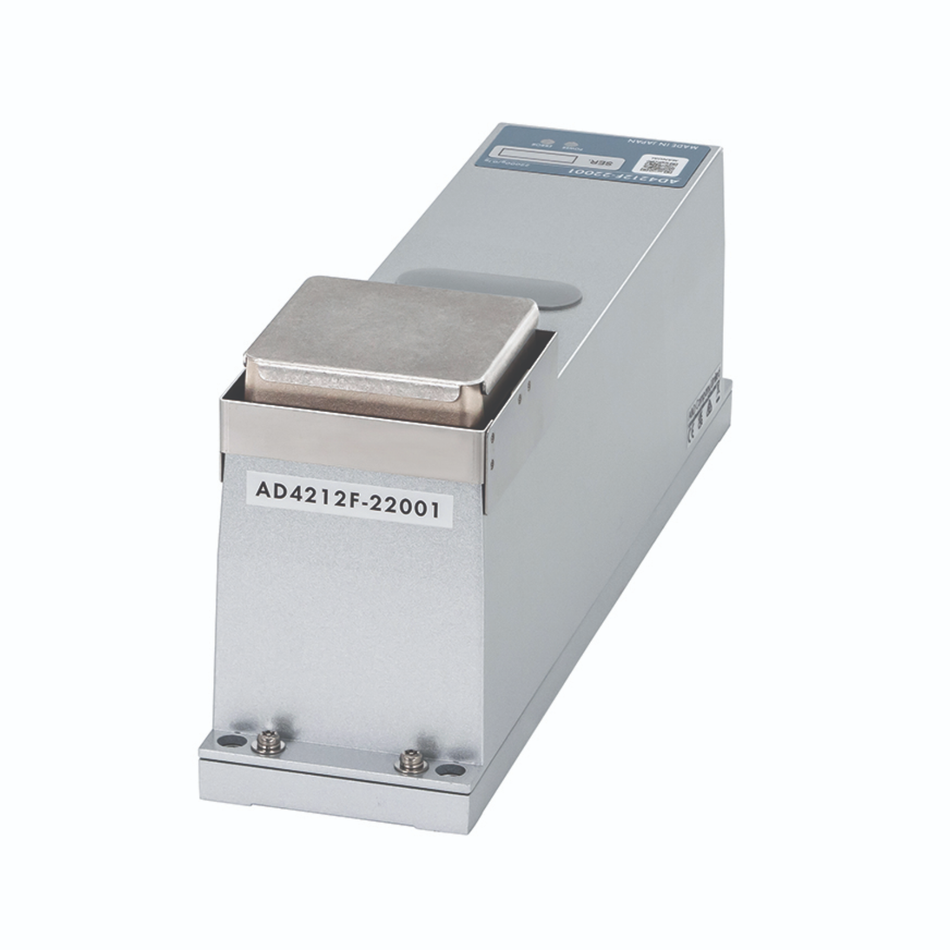

A&D AD-4212F-22001 High-Capacity Weighing Sensor 22kg Capacity x 0.1g Readability for Automated Weighing Systems

The A&D AD-4212F-22001 High-Capacity Weighing Sensor Module is designed for system integrators building automated weighing equipment for industrial and laboratory applications. Its integrated analogue-to-digital converter supports direct PC or PLC connection, while its compact construction allows integration into custom equipment and production systems.

Offering a capacity of 22,000 g (22 kg) and 0.1 g resolution, the AD-4212F-22001 is suitable for automated weighing applications requiring higher load capacity. Its IP65 dust and water protection helps protect the module against powder and liquid spills. Impact Shock Detection and shock logging support monitoring of impact events that could affect weighing performance or damage the sensor.

Key Features

• Weighing capacity of 22,000 g (22 kg)
• Resolution of 0.1 g
• IP65 dust and water protection
• Integrated A/D converter for direct PC/PLC connection
• Typical stabilisation time of approximately 0.5 seconds for loads up to 300 g, excluding tare
• Impact Shock Detection (ISD)
• Shock logging records up to 50 impact events with timestamps
• Electronically Controlled Load (ECL) for automatic precision assessment
• Customisable response settings using WinCT-AD4212F software
• Weighing Data Simulator (WDS) for evaluating response settings
• RS-485 interface supporting daisy-chain connection of multiple modules
• Compatible with user-designed weighing pans and jigs

Specifications

• Model: AD-4212F-22001
• Capacity: 22,000 g (22 kg)
• Resolution: 0.1 g
• Dimensions: 80 (W) x 320 (D) x 128 (H) mm
• Pan Size: 70 mm x 70 mm
• Connection Cable: Approximately 2 m between weighing unit and display unit
• Power Supply: AC adaptor included
• Protection Rating: IP65
• Price: Price on Application (POA)

The A&D AD-4212F-22001 is suitable for automated industrial weighing equipment and integrated systems requiring high capacity, configurable response settings and reliable weighing performance.

Contact our team to enquire about pricing and product suitability.
