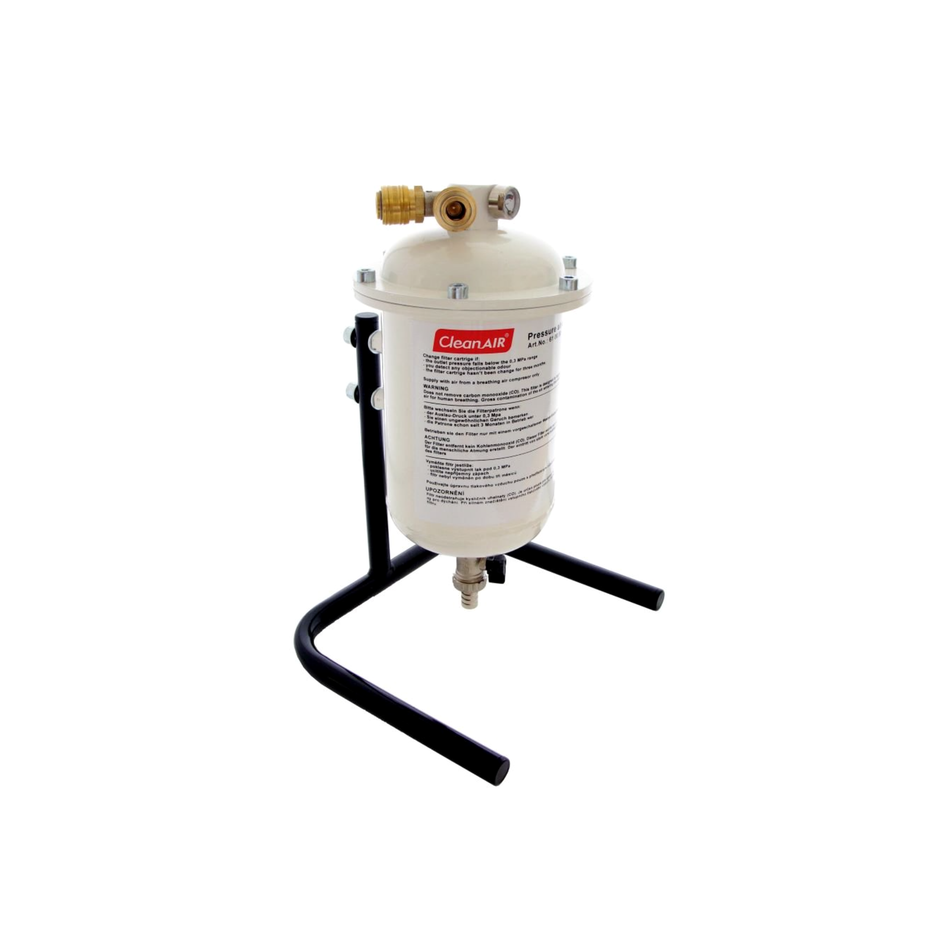

Maxisafe CleanAIR Pressure Conditioner Unit

The CleanAIR Pressure Conditioner Unit is a CleanAIR Pressure Flow Master with stand and filter. It contains a high capacity combined filter that removes solid particles, oil mist and unpleasant odours out of the air line system. It can be used in combination with CleanAIR Pressure Flow Master and improve the quality of the air flowing into the headtop.

Product Features

• Low weight
• Economical operation
• High levels of airflow
• Warning low pressure system
• Option of filtration of supplied air with CleanAIR Conditioner
• Compatible with a wide range of CleanAIR headtops

Specifications

• Dimensions: 240 mm / 380 mm / 220 mm
• Inlet connection: RECTUS 25, 26 and CEJN 320
• Outlet connection: RECTUS 25, 26 and CEJN 320
• Inlet pressure: 300-1000 kPa
• Materials: Steel with powder-coated finish
• Recommended inlet hose: R610030 Pressure hose standard, length 10 m
• Recommended outlet hose: R610046 Pressure hose spiral, length 10 m
• Storage conditions: -10C to +55C, humidity 20-95 percent Rh
• Operating conditions: 0C to +60C, humidity 20-95 percent Rh
• Weight: 6800 grams

Includes

• Filter
• Pressure Conditioner
• Stand
• Optional wall mount

Applications

• Automotive industry
• Welding
• Grinding
• Surface finishing operations
• Heavy industrial environments
• Chemical industry
• Laboratories
